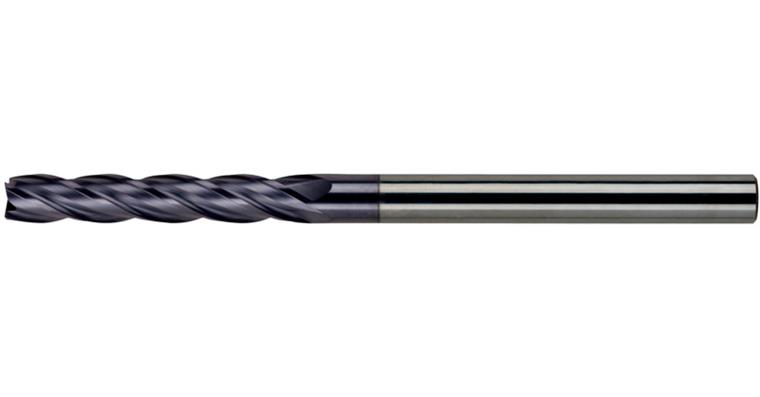

SC square end mill cyl./6535 HA ex. long 4 cut. edges C-cut P20-K40/TiAIN 4 mm

SC square end mill cyl./6535 HA ex. long 4 cut. edges C-cut P20-K40/TiAIN 4 mm

SC square end mill cyl./6535 HA ex. long 4 cut. edges C-cut P20-K40/TiAIN 4 mm
Item no: 1016549 102

Online price:

Available for immediate delivery

Application
For universal use up to 1300 N/mm²

Execution
Centre cutting


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 4 mm
Cutting edge length: 30 mm
Length: 75 mm
Shank diameter: 4 mm
Number of cutting edges (Z): 4 PCS
Twist angle: 30° (right)
Center cutting: Yes
Type: N
Construction length: Long
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,025 mm
