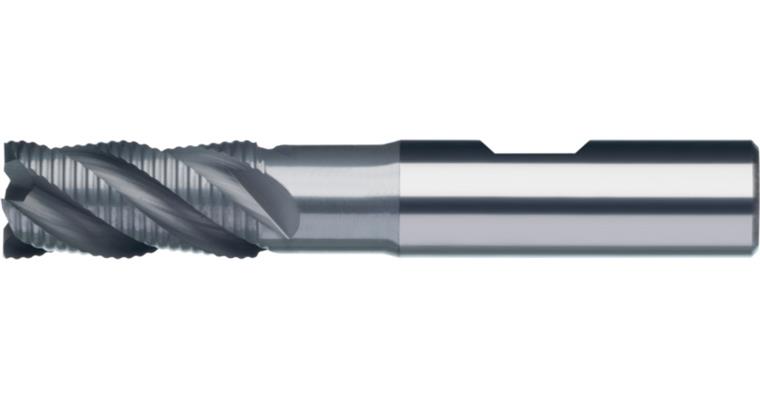

ATORN SC roughing cutter D 6x16x20x57mm, HB shaft 4 cutting edges, ULTRA MS

ATORN SC roughing cutter D 6x16x20x57mm, HB shaft 4 cutting edges, ULTRA MS

ATORN SC roughing cutter D 6x16x20x57mm, HB shaft 4 cutting edges, ULTRA MS
Item no: 1016546 106

Online price:

Available in 8-10 working days.

Application
Roughing cutter with unequal cutting pitch for machining stainless steels and titanium/Ni/Co alloys.

Execution
  • Ultra-fine grain cemented carbide
  • HB straight shank
  • With clearance
  • ULTRA MS high-performance coating
  • With edge protection chamfer
  • Defined cutting edge rounding
  • Centre cutting

Advantage
  • High-performance roughing
  • Optimised, positive cutting geometry
  • Excellent chip removal and temperature resistance
  • Maximum service life thanks to ULTRA MS coating


Brand: ATORN
Cutting material: SC
Surface: ULTRA MS
Type: VA
Number of cutting edges (Z): 4 PCS
Twist angle: 40°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 6 mm
Cutting edge length: 16 mm
Clearance length: 20 mm
Length: 57 mm
Edge protection chamfer length: 0,1 mm
Clearance diameter: 5,5 mm
Shank diameter: 6 mm
fz stainless steel: 0,023 mm

ATORN-No.: 11861055

EAN no.: 4050293359794

Product Datasheet Datasheet cutting values
