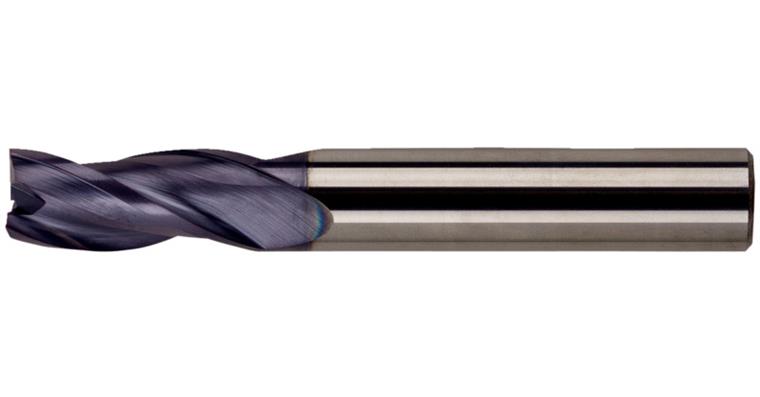

SC square end mill cyl./6535 HA short 3 cut. edges C-cut P20-K40/TiAIN 8 mm

SC square end mill cyl./6535 HA short 3 cut. edges C-cut P20-K40/TiAIN 8 mm

SC square end mill cyl./6535 HA short 3 cut. edges C-cut P20-K40/TiAIN 8 mm
Item no: 1016524 107

Online price:

Available for immediate delivery

Application
for use in cast iron, stainless steel and steel up to 1,300 N/mm²

Execution
Centre cutting


Brand: LIZZARD
Material to be processed: Steel | Cast metal | Stainless steel
Cutting edge diameter: 8 mm
Cutting edge length: 20 mm
Length: 60 mm
Shank diameter: 8 mm
Number of cutting edges (Z): 3 PCS
Twist angle: 30° (right)
Center cutting: Yes
Type: N
Construction length: Short
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,05 mm
