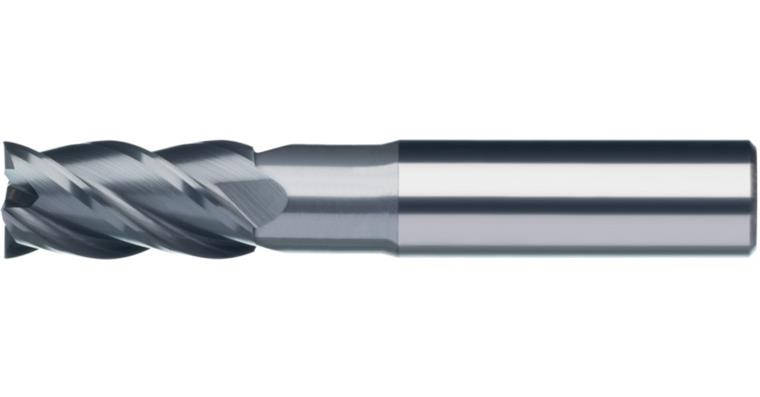

ATORN SC end mill D 4.0 x 12 x 20 x 50mm, HA shaft 4 cutting edges, ULTRA MS

ATORN SC end mill D 4.0 x 12 x 20 x 50mm, HA shaft 4 cutting edges, ULTRA MS

ATORN SC end mill D 4.0 x 12 x 20 x 50mm, HA shaft 4 cutting edges, ULTRA MS
Item no: 1016404 104

Online price:

Available in 8-10 working days.

Application
End mill for machining stainless steel, titanium alloy, nickel and copper alloys.

Execution
  • ultra-fine grain cemented carbide
  • HA straight shank
  • with clearance
  • high-performance ULTRA MS layer
  • defined cutting edge rounding
  • centre cutting

Advantage
  • optimised, positive cutting geometry
  • optimum chip removal and temperature resistance
  • maximum service life thanks to ULTRA MS coating


Brand: ATORN
Cutting material: SC
Surface: ULTRA MS
Type: VA
Number of cutting edges (Z): 4 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 4 mm
Cutting edge length: 12 mm
Clearance length: 20 mm
Length: 50 mm
Clearance diameter: 3,7 mm
Shank diameter: 6 mm
fz stainless steel: 0,02 mm
Overall stainless steel suitability: 1
fitness not iron total: 3
fitness Titan/Nickel/Super total: 1

ATORN-No.: 11861029

EAN no.: 4050293359534

Product Datasheet Datasheet cutting values
