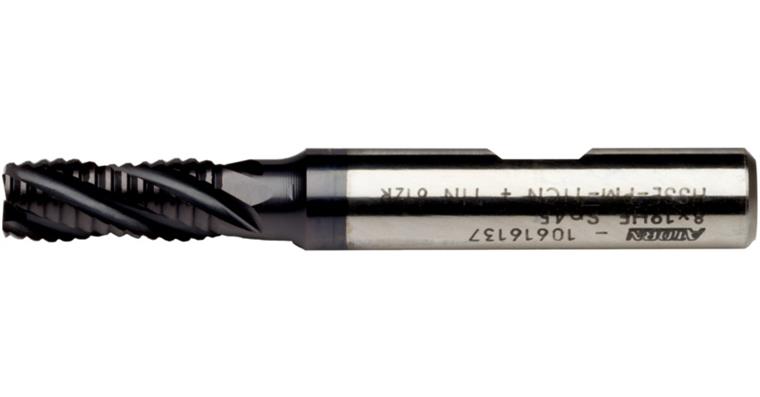

ATORN end mill PM TiAlN D844B K HF, diameter 8.0 mm

ATORN end mill PM TiAlN D844B K HF, diameter 8.0 mm

ATORN end mill PM TiAlN D844B K HF, diameter 8.0 mm
Item no: 1016272 208

Online price:

Available in 11-13 working days.

Application
Roughing cutter for universal machining.

Execution
  • HSSE PM
  • HRF - fine roughing and finishing teeth
  • Centre cutting
  • Straight shank according to DIN 1835 B
  • TiAIN-coating for maximum service life
  • Also for dry milling with compressed air
  • Twist angle 30°


Brand: ATORN
Cutting material: HSSE-PM
Surface: TiAlN
Type: HF
Number of cutting edges (Z): 4 PCS
Twist angle: 30°
Edge protection chamfer length: 0,2 mm
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 8 mm
Cutting edge length: 19 mm
Length: 69 mm
Shank diameter: 10 mm
fz steel 700: 0,057 mm

ATORN-No.: 11650042

EAN no.: 4050293192360

Product Datasheet Datasheet cutting values
