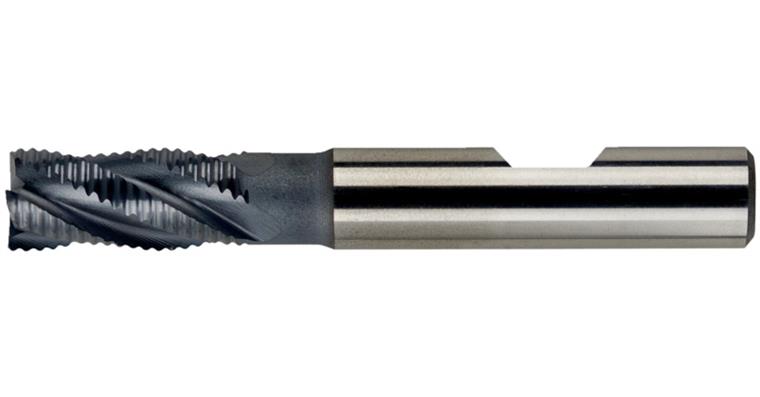

End roughing mill cyl. DIN 844 B type HR short 4 cut edg c-cut HSS-E/TiAlN 20 mm

End roughing mill cyl. DIN 844 B type HR short 4 cut edg c-cut HSS-E/TiAlN 20 mm

End roughing mill cyl. DIN 844 B type HR short 4 cut edg c-cut HSS-E/TiAlN 20 mm
Item no: 1016262 108

Online price:

Available for immediate delivery

Execution
  • Short
  • HSSE Co8
  • TiAlN coating
  • With eccentric relief grinding
  • With released straight shank with driving surface in accordance with DIN 1835 B
  • Fine roughing profile
  • Right cutting with centre cutting
  • Right-hand twist, approx. 35°


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 20 mm
Cutting edge length: 38 mm
Length: 104 mm
Shank diameter: 20 mm
Clearance diameter: 19.0
Number of cutting edges (Z): 4 PCS
Tool holding device: HB parallel shank
Twist angle: 35° (right)
Type: HR
Construction length: Normal
Coolant supply: External
Design of cutting edges: Roughing
Cutting direction: Right-hand cutting
Tolerance of shank diameter: h6
