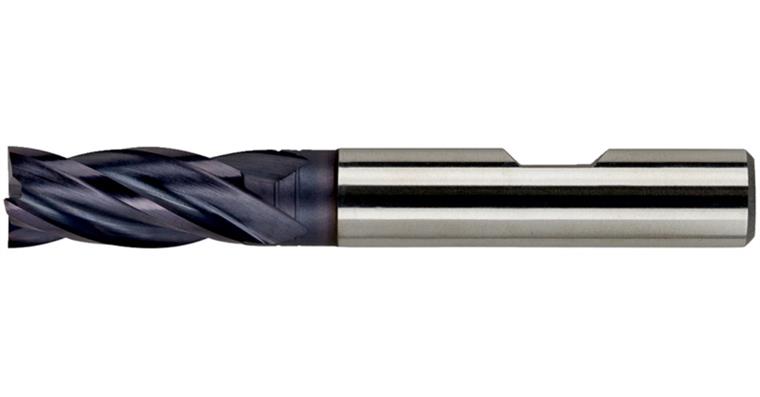

End mill cyl. DIN 844 B type N short 5 cut edg c-cut HSS-E PM + TiAlN 25 mm

End mill cyl. DIN 844 B type N short 5 cut edg c-cut HSS-E PM + TiAlN 25 mm

End mill cyl. DIN 844 B type N short 5 cut edg c-cut HSS-E PM + TiAlN 25 mm
Item no: 1016131 312

Online price:

Still in stock: 4

Execution
  • Short
  • HSSE-PM
  • TiAlN coating
  • Centre cutting
  • Right-cutting
  • Right-hand twist, approx. 35°
  • Straight shank with driving surface in accordance with DIN 1835 B

Notes
Also suitable for dry machining.

Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 25 mm
Cutting edge length: 45 mm
Length: 121 mm
Shank diameter: 25 mm
Number of cutting edges (Z): 5 PCS
Twist angle: 35°
Center cutting: Yes
Type: N
Construction length: Normal
Coolant supply: External
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
