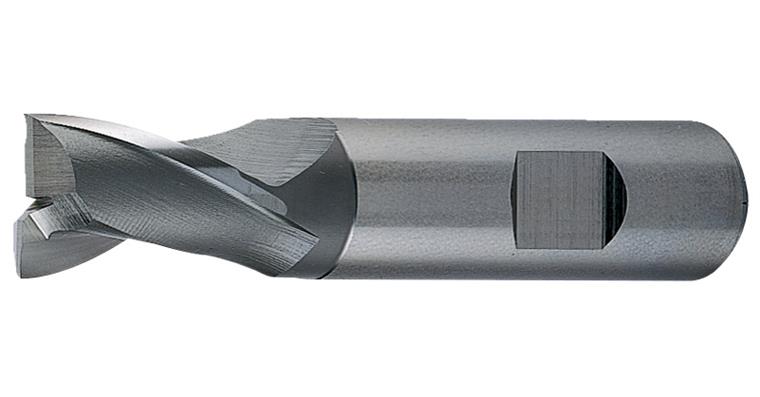

Square end mill str. DIN 327 D type N short 2 cut edg Z-cut HSS-E 1.0 mm

Square end mill str. DIN 327 D type N short 2 cut edg Z-cut HSS-E 1.0 mm

Square end mill str. DIN 327 D type N short 2 cut edg Z-cut HSS-E 1.0 mm
Item no: 1016060 201

Online price:

Still in stock: 2

Execution
  • Short
  • Right-cutting
  • Right-hand twist 30°
  • 2 cutting edges
  • Centre cutting
  • Straight shank with driving surface in accordance with DIN 1835 B


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 1 mm
Cutting edge length: 2,5 mm
Length: 47 mm
Shank diameter: 6 mm
Number of cutting edges (Z): 2 PCS
Twist angle: 30°
Type: N
Construction length: Short
Coolant supply: External
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
Tolerance of cutting edge diameter: e8
Tolerance of shank diameter: h6
