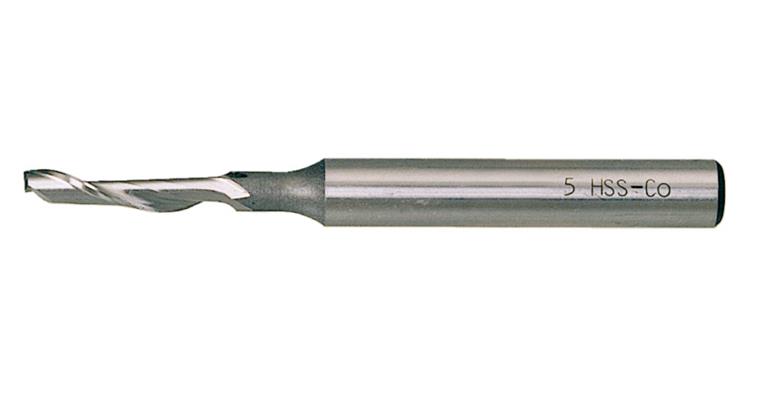

Single-tooth milling cutter cyl. HSS-E 4 mm L= 60 mm

Single-tooth milling cutter cyl. HSS-E 4 mm L= 60 mm

Single-tooth milling cutter cyl. HSS-E 4 mm L= 60 mm
Item no: 1016010 102

Online price:

Available for immediate delivery

Application
For milling slots on aluminium doors and windows on high-speed milling machines.

Execution
  • HSSE Co5
  • Uncoated
  • Straight shank
  • With just one cutting edge
  • For cutting on periphery and end face


Brand: LIZZARD
Material to be processed: Aluminium
Cutting edge diameter: 4 mm
Cutting edge length: 12 mm
Length: 60 mm
Shank diameter: 8 mm
Number of cutting edges (Z): 1 PCS
Twist angle: 30° (right)
Type: W
Construction length: Normal
Coolant supply: External
Cutting direction: Right-hand cutting
Tolerance of cutting edge diameter: js14
Tolerance of shank diameter: h6
