Mounting plate for 50 end mills of 8 mm diameter 140 x 70 mm

Mounting plate for 50 end mills of 8 mm diameter 140 x 70 mm

Mounting plate for 50 end mills of 8 mm diameter 140 x 70 mm
Item no: 1016005 103

Online price:

Still in stock: 3

Application

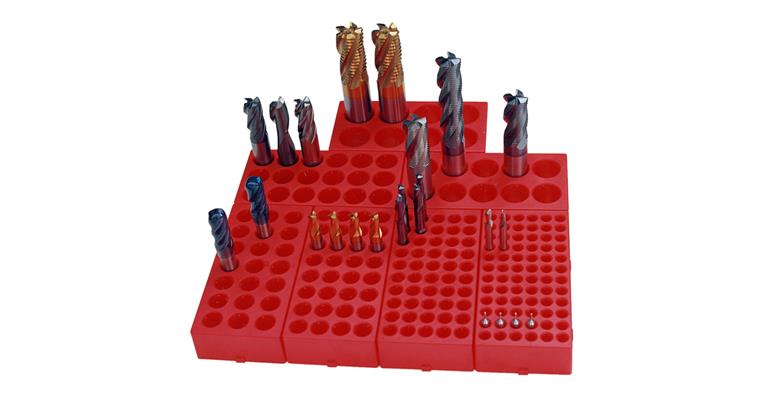

The various mounting plates can be joined together in modules to form a plate system. Each plate body has dovetail-shaped couplings on the sidewalls. They form an invisible connection so that combinations appear as one unit.

Execution
  • Rectangular
  • Each with the same shank holes to each accommodate a certain shank diameter
  • Plate bodies made of red injection-moulded plastic
  • Robust, easy to handle, sits well
  • Tools with a short clamping shank protrude far enough out of the location hole to be easy to remove
  • All shank bores have an open base to prevent blockages, e.g. by chips
  • Slightly conical hole guide for easy handling of the end mill

Delivery
Mill not included


Brand: LIZZARD
Bore diameter: 8 mm
Number of drill holes: 50 PCS
Width: 70 mm
Depth: 182 mm
Height: 30 mm
Material: Plastics - Polyamide PA
Colour: Red

EAN no.: 4024496027101

Product Datasheet
