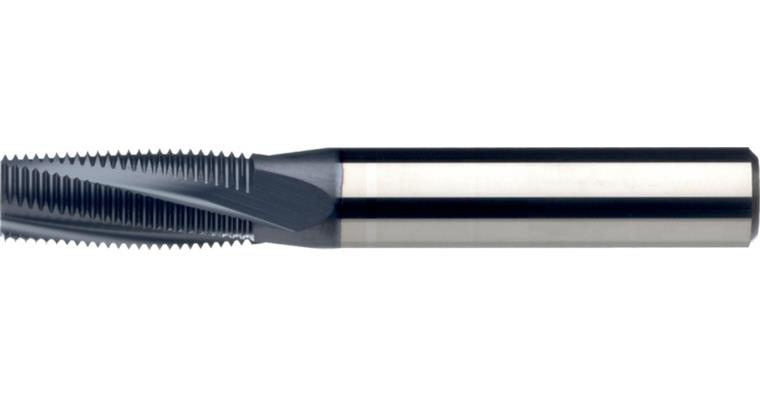

ATORN thread milling cutter SC-TIAIN IC 18 threads/inch 5.3 mm 14.8 mm

ATORN thread milling cutter SC-TIAIN IC 18 threads/inch 5.3 mm 14.8 mm

ATORN thread milling cutter SC-TIAIN IC 18 threads/inch 5.3 mm 14.8 mm
Item no: 1014648 102

Online price:

Available in 4-6 working days.

Application
For producing right-hand and left-hand Whitworth threads on CNC machines in through holes and blind holes in the steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1500 N/mm².

Advantage
Innovative cutting geometry for very high dimensional accuracy, process reliability and chip removal.


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Coolant supply (IK): Internal radial
Tool holding device: HA parallel shank
Cutting edge diameter (d1): 5,3 mm
Length (L1): 58 mm
Cutting edge length (l2): 14,8 mm
Shank diameter: 6 mm
Number of cutting edges: 3 PCS
f steel 1000: 0,04 mm/r

ATORN-No.: 11945939

EAN no.: 4050293263688

Product Datasheet Datasheet cutting values
