ATORN thr. mill. cutt., SC-TIAlN TH/BH 2xD 7.8 mm 1.5 mm 64 mm HA UNI

ATORN thr. mill. cutt., SC-TIAlN TH/BH 2xD 7.8 mm 1.5 mm 64 mm HA UNI

ATORN thr. mill. cutt., SC-TIAlN TH/BH 2xD 7.8 mm 1.5 mm 64 mm HA UNI
Item no: 1014610 111

Online price:

Still in stock: 2

Application
For producing metric right-hand and left-hand threads on CNC machines in through holes and blind holes in the steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1500 N/mm².

Execution
Thread milling cutters with short thread section

Advantage
  • Innovative cutting geometry and high-quality cemented carbide ensure very high degree of dimensional accuracy, process reliability and chip removal
  • Tapping of very small threads from M1 x 0.2 possible


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Hole type: Clearance/blind hole ≤ 2xD
Coolant supply: External
Tool holding device: HA parallel shank
Cutting edge diameter (d1): 7,8 mm
Pitch: 1,5 mm
Suitable for metric threads from: M10
Length (l1): 64 mm
Effective length of thread milling (l2): 23 mm
Shank diameter: 8 mm
Number of cutting edges: 3 PCS
f steel 1000: 0,12 mm/r

ATORN-No.: 11940336

EAN no.: 4050293207651

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill HSSE-V3 TiAlN 5XD 9.6 x 10 mm x 133 mm
  •
    ATORN twist drill HSSE-V3 TiAlN 5XD 9.7 x 10 mm x 133 mm
  •
    ATORN twist drill HSSE-V3 TiAlN 5XD 9.9 x 10 mm x 133 mm
  •

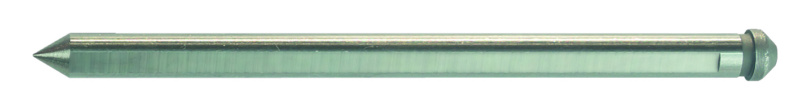

    Cent. pnt f ann. cutter with thread M18 cat. no. 10960 length=125 mm
  •
