Machine tap G DIN 5156 shape C 2.5xD HSS-E 3/4 inch

Machine tap G DIN 5156 shape C 2.5xD HSS-E 3/4 inch

Machine tap G DIN 5156 shape C 2.5xD HSS-E 3/4 inch
Item no: 1014602 106

Online price:

Still in stock: 3

Application
- Whitworth pipe thread
- Through holes and blind holes
- Max. drilling depth 2.5xD
- Steels up to 800 N/mm²

Execution
  • DIN 5156-DIN ISO 228
  • DIN chamfer shape C (2-3 turns)

Notes
Cost-effective design.

Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter in inches: G 3/4 in
Max. thread depth: 2.5xD
Thread dimension: G 3/4 inch - 14
Number of thread starts per inch: 14
Cutting material: HSSE
Surface: Uncoated
Hole type: Clearance/blind hole ≤ 2.5xD
Lead angle shape: C
Length: 140 mm
Cutting edge length: 28 mm
Core hole diameter: 24,50 mm
Shank diameter: 20 mm
Shank square: 16 mm
Thread type: Pipe thread
Twist angle: 0°
DIN: 5156
Coolant supply: External
Nominal diameter in inches: 3/4 in
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN countersink, 90°, HSS, T=3, extremely unequal pitch, 10.0 x 50 mm
    31,54 €
  • Through hole screw tap M DIN 376 shape B 1.5xD HSS-E-OX M20
    92,04 €
  • Through hole screw tap M DIN 371 shape B 2xD HSS-E left-cutting M5
  •
    Blind hole screw tap M DIN 371 15° shape C 2xD HSS-E-TiCN M6
    23,56 €
  • Through hole screw tap UNF DIN 376 shape B 3xD HSS-E 7/16 inch
    45,74 €
  • Drill and reamer extension DIN 228 B L=500 mm MK 2/2
    112,67 €
  • SIMPLEX soft-face hammer impact inserts nylon and soft metal dia. 30 mm
  •
    SIMPLEX soft-face hammer impact inserts nylon and soft metal dia. 50 mm
  •
    SIMPLEX soft-face hammer impact inserts nylon and soft metal dia. 60 mm
  •
    Pneumatic-hydraulic blind rivet gun TAURUS®2 aluminium/steel up to 6 mm dia.
    1.031,00 €
  • KNIPEX circlip pliers J0 140 mm inset tips for internal rings
    14,94 €

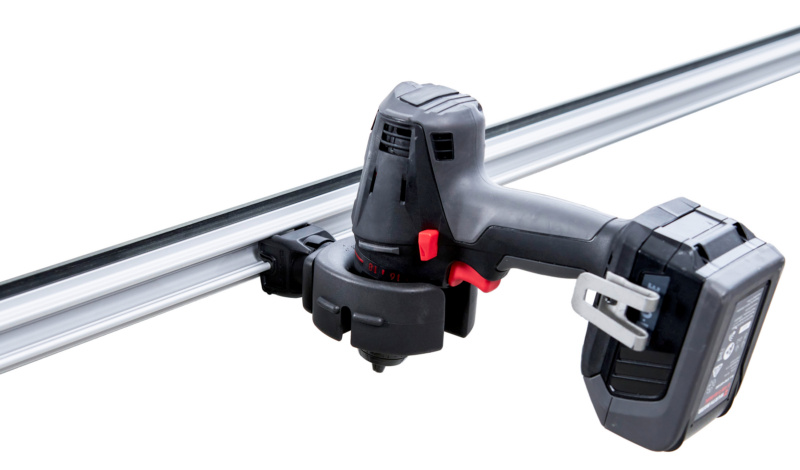

  • CLIP-O-FLEX Akku-Schrauberhalter passend für COF Halteschiene
