ATORN screw tap HSSE vaporised G 1 1/4 inch shape C for blind hole

ATORN screw tap HSSE vaporised G 1 1/4 inch shape C for blind hole

ATORN screw tap HSSE vaporised G 1 1/4 inch shape C for blind hole
Item no: 1014577 116

Online price:

Available in 6-8 working days.

Application
For producing pipe threads on CNC machines or conventional machines in blind holes in the steel, stainless steel, non-ferrous metals and cast material groups up to a strength of 1000 N/mm².

Execution
With protruding shank

Advantage
  • Universal use for maximum flexibility of application
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Pipe thread
Thread dimension: G 1 1/4 inch - 11
Thread type x nominal diameter in inches: G 1-1/4 in
Tolerance of screw taps (Tol.): ISO 2 (6H)
Number of thread starts per inch: 11
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 170 mm
Cutting material: HSSE
Surface: Vaporised
Twist angle: 40° (right)
Shank diameter: 32 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 39,5 mm
Type: UNI 40 Control
Coolant supply: External
Shank square: 24 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290695

EAN no.: 4050293136388

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • ATORN indexable cutting insert Z1 ASS 3.00-03 MU APU40G
    17,01 €
  • Standard clamping jaw for Hydro M vice type SM, NC, UNC with BB 125 mm
  •

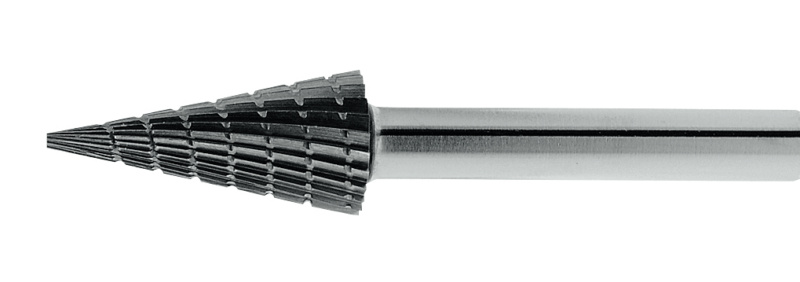

    ATORN burs HSS shape DIN M 1230.06 cut 1
