ATORN screw tap HSSE vaporised shape C UNC 1 inch for blind hole

ATORN screw tap HSSE vaporised shape C UNC 1 inch for blind hole

ATORN screw tap HSSE vaporised shape C UNC 1 inch for blind hole
Item no: 1014559 209

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC machines or conventional machines in through holes in the steel, stainless steel, non-ferrous metals and cast iron material groups up to a strength of 1000 N/mm².

Advantage
  • Universal use for maximum flexibility
  • Innovative cutting geometry ensures high process reliability even under difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: UNC
Thread dimension: 1 inch - 8UNC
Thread type x nominal diameter in inches: UNC 1 in
Tolerance of screw taps (Tol.): ISO 2 (6H)
Number of thread starts per inch: 8
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 160 mm
Cutting material: HSSE
Surface: Vaporised
Twist angle: 40° (right)
Shank diameter: 20 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 22,3 mm
Type: UNI 40 Control
Coolant supply: External
Shank square: 16 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11291088

EAN no.: 4050293560640

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • Long hex ball head T-handle wrench Hex-Plus yellow AF 4 mm w. holding function
  •

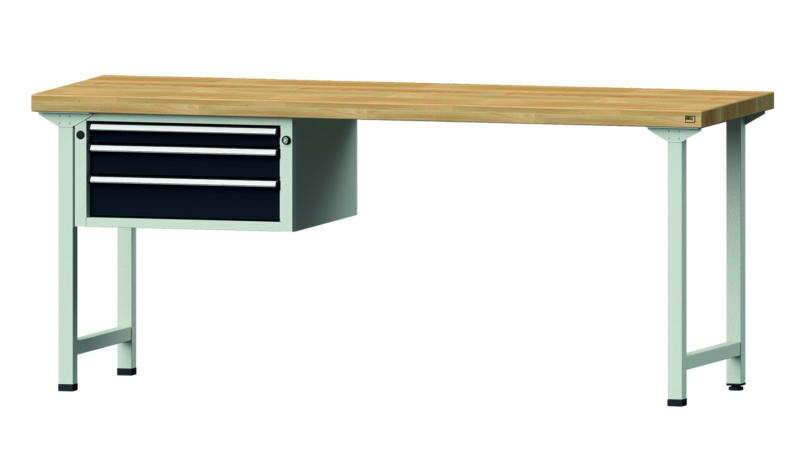

    Combination workbench 2000x700x850mm model 522V universal plate RAL7035/5012
  •
