ATORN screw tap HSSE vaporised DIN 376 0° shape C MF22 x 1.5 6H 3xD CNC K

ATORN screw tap HSSE vaporised DIN 376 0° shape C MF22 x 1.5 6H 3xD CNC K

ATORN screw tap HSSE vaporised DIN 376 0° shape C MF22 x 1.5 6H 3xD CNC K
Item no: 1014532 111

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC or conventional machines in through holes and blind holes in the non-ferrous metals (short-chipping) and cast iron material groups.

Advantage
Long service life and good process reliability due to innovative cutting edge geometry when machining cast iron and short-chipping non-ferrous metals


Brand: ATORN
Material to be processed: Cast metal
Thread type: Metric fine thread
Thread type x nominal diameter: MF22
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: C
Length: 125 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 1,5 mm
Twist angle: 0°
DIN: 374
Shank diameter: 18 mm
Core hole diameter: 20,5 mm
Type: K MAX Control
Coolant supply: External
Shank square: 14,5 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10487391

EAN no.: 4066107016760

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €

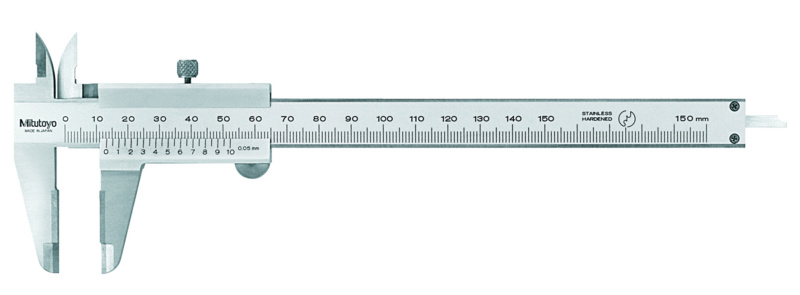

  • Precision pocket vernier callipers 0-150 mm TC meas. surf. f. ext. meas.
  •
    Precision pocket vernier callipers 0-300 mm TC meas. surf. f. ext. meas.
  •
    Adj. wrench DIN 3117 AF 24.0 mm L=211 mm
  •

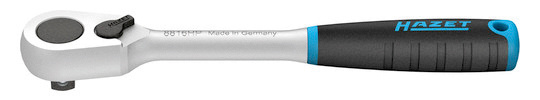

    Reversible ratchet 3/8 inch 8816HP 200 mm
  •
