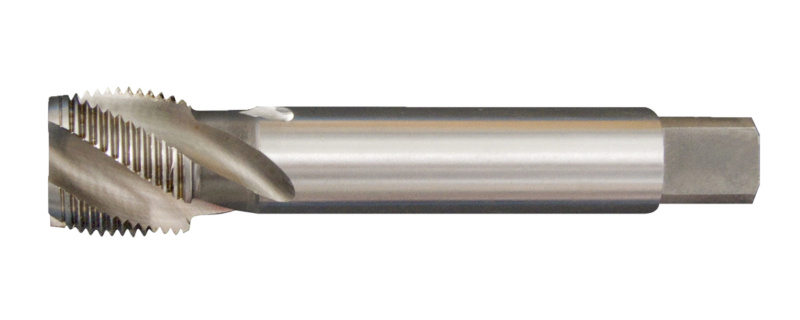

ATORN screw tap HSSE vaporised DIN 376 0° shape C MF6 x 0.75 6H 3xD CNC K

ATORN screw tap HSSE vaporised DIN 376 0° shape C MF6 x 0.75 6H 3xD CNC K

ATORN screw tap HSSE vaporised DIN 376 0° shape C MF6 x 0.75 6H 3xD CNC K
Item no: 1014532 103

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC or conventional machines in through holes and blind holes in the non-ferrous metals (short-chipping) and cast iron material groups.

Advantage
Long service life and good process reliability due to innovative cutting edge geometry when machining cast iron and short-chipping non-ferrous metals


Brand: ATORN
Material to be processed: Cast metal
Thread type: Metric fine thread
Thread type x nominal diameter: MF6
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: C
Length: 80 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 0,75 mm
Twist angle: 0°
DIN: 374
Shank diameter: 4,5 mm
Core hole diameter: 5,2 mm
Type: K MAX Control
Coolant supply: External
Shank square: 3,4 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10487383

EAN no.: 4066107016685

Product Datasheet
