Through hole screw tap MF DIN 374 shape B 2.5xD HSS-E MF22x1.50

Through hole screw tap MF DIN 374 shape B 2.5xD HSS-E MF22x1.50

Through hole screw tap MF DIN 374 shape B 2.5xD HSS-E MF22x1.50
Item no: 1014504 132

Online price:

Available in 5-7 working days.

Application
- Metric fine thread
- Through holes
- Max. drilling depth 2.5xD
- Steels up to 800 N/mm²

Execution
  • Spiral point
  • Tolerance field 6H
  • DIN 374
  • DIN chamfer shape B (3.5-5 turns)
  • HSS-E

Notes
Cost-effective design.

Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: MF22
Max. thread depth: 2.5xD
Thread dimension: M22
Pitch: 1,5 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Blind hole ≤ 2.5xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 125 mm
Cutting edge length: 25 mm
Core hole diameter: 20,50 mm
Shank diameter: 18 mm
Shank square: 14,5 mm
Thread type: Metric fine thread
Twist angle: 0°
DIN: 374
Coolant supply: External
Nominal diameter: 22 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE vap. B 374 0° MF12 1.5 mm ISO2 D 3xD CNC P
    39,73 €
  • Spiral countersink (core drill) DIN 343 type N HSS ground MK 1 11.75 mm
    65,44 €
  • EINLIPPEN-TIEFLOCHBOHRER E80 30XD MIT TICN VHM-KOPF GERADE HA Ø 22,0
  •
    ATORN screw tap HSSE-PM TiN B 371 0° M8 1.25 mm ISO2 D 3xD CNC UNI
  •
    Through hole screw tap Hyper Z Series DIN 376 shape B 2xD HSS-E M 22
  •
    ATORN blind hole screw tap DIN 371 HSS-E 40° for VA M10
    25,10 €
  • LIZZARD Spannzange ER 32 HP Ø 4,0 metallisch abgedichtet Rundlauf 0,005 mm
    53,76 €
  • ATORN gripper jaws internal hardened 1.5 mmx60° M12 spacing 30 mm
    461,00 €

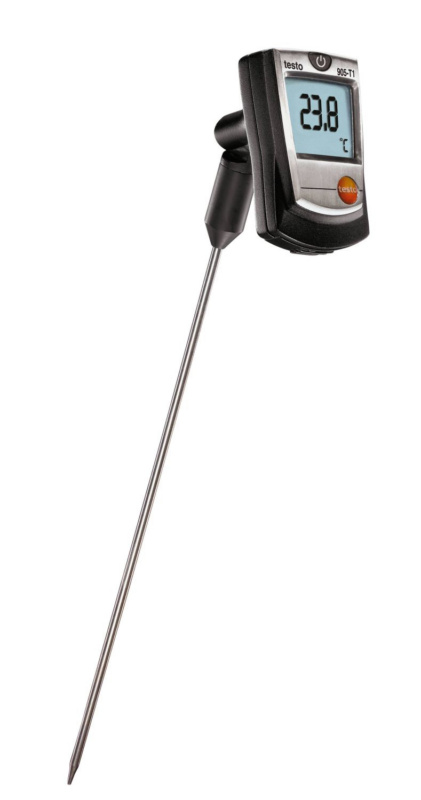

  • Einstech-Thermometer mit großem Messbereich testo 905-T1
  •
