Through hole screw tap MF DIN 374 shape B 3xD HSS-E-TiN MF12x1.50

Through hole screw tap MF DIN 374 shape B 3xD HSS-E-TiN MF12x1.50

Through hole screw tap MF DIN 374 shape B 3xD HSS-E-TiN MF12x1.50
Item no: 1014500 117

Online price:

Still in stock: 4

Application
- Metric fine thread
- Through holes
- Max. drilling depth 3xD
- Steels up to 800 N/mm²

Execution
  • Spiral point tap for excellent chip transport to the front
  • Tolerance range 6H
  • DIN 374
  • DIN type B (3.5-5 chamfer threads)
  • HSSE, TiN-coated

Notes
Reduced buildup of material deposits due to TiN coating

Brand: ATORN
Material to be processed: Steel
Thread type: Metric fine thread
Thread type x nominal diameter: MF12
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 100 mm
Cutting material: HSSE
Surface: TiN
Pitch: 1,5 mm
Twist angle: 0°
DIN: 374
Shank diameter: 9 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 10,50 mm
Coolant supply: External
Shank square: 7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • ATORN centre drill HSS form A 1.25 mm x 3.15 mm x 31.5 mm
    4,16 €

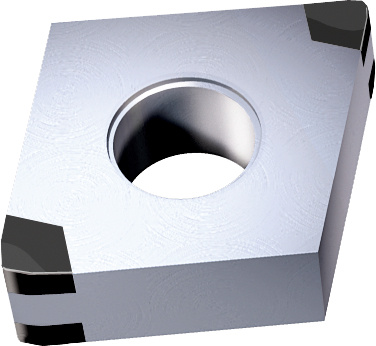

  • ATORN indexable insert, CBN, coated, CNGA 120404W-4S, ABC25B/D, with chamfer
  •

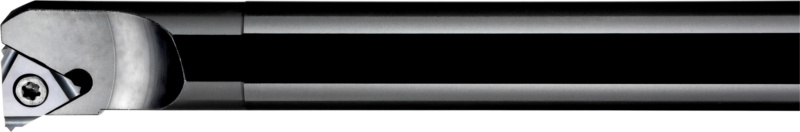

    ATORN thread boring bar SIR0025R16
  •
    ATORN plunge insert set, 16 ER/IL 1.00–2.25 SET
  •

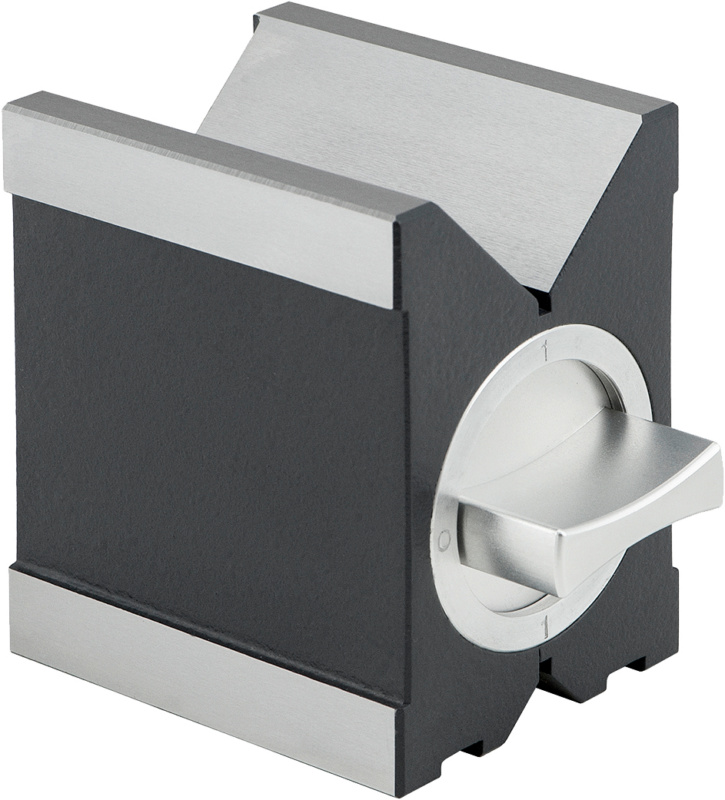

    ATORN double vee block, magnetic, 100 mm, hardened, wooden case
    749,38 €
  • Inspection rule DIN866/A lasered 1/1 mm graduation normal steel L=3000 mm
  •

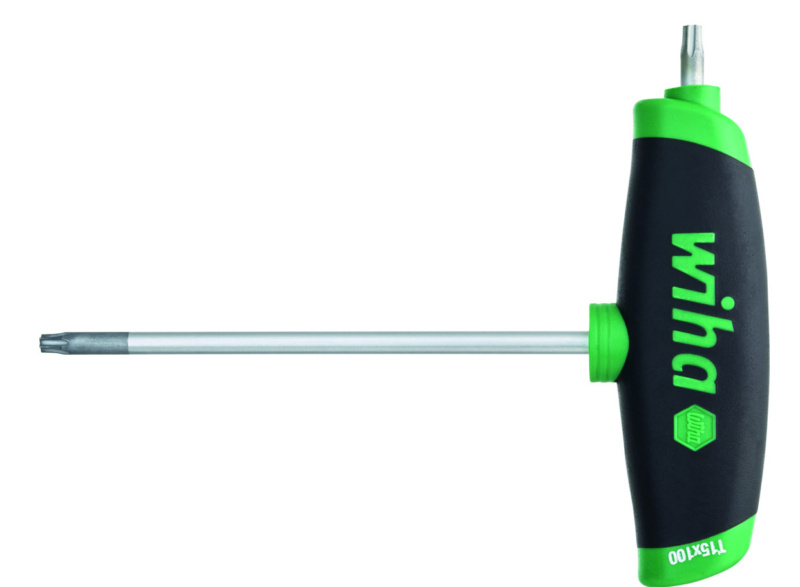

    TX® pin wrench with T-handle 364DS ComfortGrip T25 x 150 mm
  •
    Nylon knitted glove Royaltec Tech 2107 PU = 12 pairs size 10
    32,40 €
  • ATORN A-Mech 2 assembly glove, size 10
    2,60 €
  • Cut protection glove Royaltec Cut 6601 PU=1 pair size 9
    7,80 €
  • Disposable glove Dermatril® 740 PU=100 pieces size 9
    26,40 €

[Text nicht gefunden]

  • ATORN centre drill HSS form A 1.6 mm x 4 mm x 35 mm
  •
    ATORN centre drill HSS form A 2.0 mm x 5 mm x 40 mm
  •
    ATORN centre drill HSS form A 3.15 mm x 8 mm x 50 mm
  •

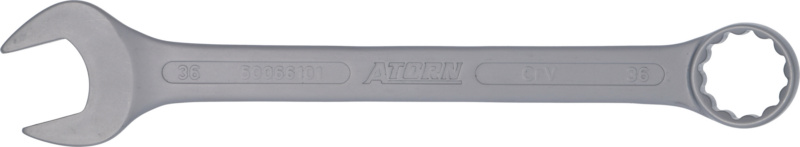

    ATORN combination wrench 36 mm DIN 3113 A
  •
