Through hole screw tap MF DIN 374 shape B 3xD HSS-E-TiN MF5x0.50

Through hole screw tap MF DIN 374 shape B 3xD HSS-E-TiN MF5x0.50

Through hole screw tap MF DIN 374 shape B 3xD HSS-E-TiN MF5x0.50
Item no: 1014500 104

Online price:

Still in stock: 1

Application
- Metric fine thread
- Through holes
- Max. drilling depth 3xD
- Steels up to 800 N/mm²

Execution
  • Spiral point tap for excellent chip transport to the front
  • Tolerance range 6H
  • DIN 374
  • DIN type B (3.5-5 chamfer threads)
  • HSSE, TiN-coated

Notes
Reduced buildup of material deposits due to TiN coating

Brand: ATORN
Material to be processed: Steel
Thread type: Metric fine thread
Thread type x nominal diameter: MF5
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 70 mm
Cutting material: HSSE
Surface: TiN
Pitch: 0,5 mm
Twist angle: 0°
DIN: 374
Shank diameter: 3,5 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 4,50 mm
Coolant supply: External
Shank square: 2,7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290476

EAN no.: 4050293134582

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

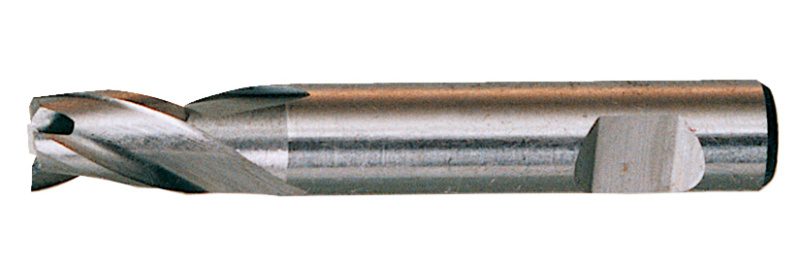

  • Mini-Fräser zyl./1835 B kurz 3 Schneiden, Zentrumschnitt HSS-E 16 mm
  •
    Mini-Fräser zyl./1835 B kurz 3 Schneiden, Zentrumschnitt HSS-E 20 mm
  •
    ATORN RockTec PRO mini end mill, long neck 0.7x1x2x45 mm T=2 HA
  •
    ATORN RockTec PRO mini end mill, long neck 1.2x1.8x8x45 mm T=2 HA
  •
    ATORN RockTec PRO mini end mill, long neck 1.5x2.3x3x45 mm T=2 HA
  •
    ATORN RockTec PRO mini end mill, long neck 3x4.6x10x45 mm T=2 HA
  •
    ATORN RockTec PRO mini end mill, long neck 3x4.6x12x45 mm T=2 HA
  •
    ATORN RockTec PRO mini end mill, long neck 3x4.6x16x50 mm T=2 HA
  •
    ATORN smooth steel wire pipe brush 25 mm, width 1/2 inch, length 150 mm
  •
    ATORN smooth steel wire pipe brush 35 mm, width 1/2 inch, length 160 mm
  •

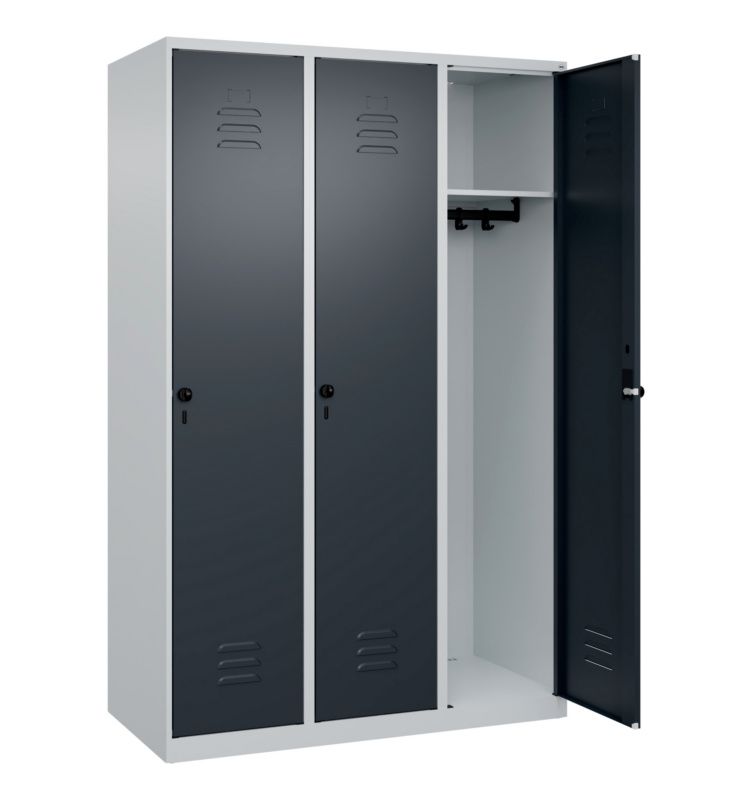

    Spind Classic PLUS, 3 Abteile, 1850x1200x500mm RAL 7035/7016
  •
