Through hole screw tap MF DIN 374 shape C 2.5xD HSS-E MF8x0.75

Through hole screw tap MF DIN 374 shape C 2.5xD HSS-E MF8x0.75

Through hole screw tap MF DIN 374 shape C 2.5xD HSS-E MF8x0.75
Item no: 1014498 108

Online price:

Still in stock: 2

Application
- Metric fine thread
- Through holes
- Max. drilling depth 2.5xD
- Steels up to 800 N/mm²

Execution
  • Without spiral point tap
  • Tolerance range 6H
  • DIN 374
  • DIN type C (2-3 chamfer threads)
  • HSSE


Brand: ATORN
Material to be processed: Steel
Thread type: Metric fine thread
Thread dimension: M8
Thread type x nominal diameter: MF8
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance hole ≤ 2xD
Lead angle shape: C
Length: 80 mm
Cutting material: HSSE
Surface: Uncoated
Pitch: 0,75 mm
Twist angle: 0°
DIN: 374
Shank diameter: 6 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 7,25 mm
Coolant supply: External
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill bit DIN 345 HSS-E 118° morse taper type N dia. 10.00 mm
  •
    ATORN twist drill bit DIN 345 HSS-E 118° morse taper type N dia. 11.50 mm
  •
    ATORN twist drill bit DIN 345 HSS-E 118° morse taper type N dia. 12.20 mm
  •
    ATORN twist drill bit DIN 345 HSS-E 118° morse taper type N dia. 13.00 mm
    49,63 €
  • ATORN twist drill bit DIN 345 HSS-E 118° morse taper type N dia. 17.25 mm
  •
    ATORN twist drill bit DIN 345 HSS-E 118° morse taper type N dia. 18.00 mm
  •
    ATORN twist drill bit DIN 345 HSS-E 118° morse taper type N dia. 21.00 mm
  •
    ATORN twist drill bit DIN 345 HSS-E 118° morse taper type N dia. 31.50 mm
  •
    Quick-change holder type WDL sz. 3/40 f. revolving hd. RD/3 a. UD/3 cat.no.21870
  •
    Quick-change holder type WDR sz. 2/25 f. revolving hd. RD/2 a. UD/2 cat.no.21870
  •
    Quick-change holder type WDR sz. 4/40 f. revolving hd. RD/4 a. UD/4 cat.no.21870
  •

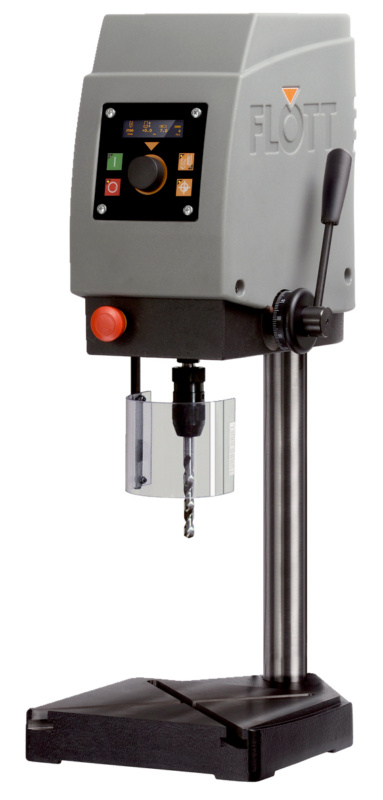

    Bench drill TB 10 PLUS motor 230/0.54 V/kW spindle B 16
