ATORN screw tap HSSE vaporised MF12 x 1 mm shape C for blind hole

ATORN screw tap HSSE vaporised MF12 x 1 mm shape C for blind hole

ATORN screw tap HSSE vaporised MF12 x 1 mm shape C for blind hole
Item no: 1014497 204

Online price:

Available in 6-8 working days.

Application
For manufacturing fine metric threads in blind holes on CNC or conventional machines in the steel, stainless steel, NF metals and cast material groups up to a strength of 1000 N/mm².

Execution
With protruding shank

Advantage
  • Universal use for maximum flexibility of application
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric fine thread
Thread type x nominal diameter: MF12
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 100 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 1 mm
Twist angle: 40° (right)
Shank diameter: 9 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 11 mm
Type: UNI 40 Control
Coolant supply: External
Shank square: 7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290983

EAN no.: 4050293423839

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • ATORN screw tap HSSE vaporised MF18 x 2 mm shape C for blind hole
  •
    Carbide thermic drill bit Flowdrill standard short dia. 4.5 mm M5 with collar
  •
    Alkaline batteries 40 pieces Micro (AAA) in a resealable economy pack
  •
    Precision barrette file, flat side cut, length 200 mm, cut 1
  •
    6 mm hexagon combi blade with 1/4 inch square drive mount
  •

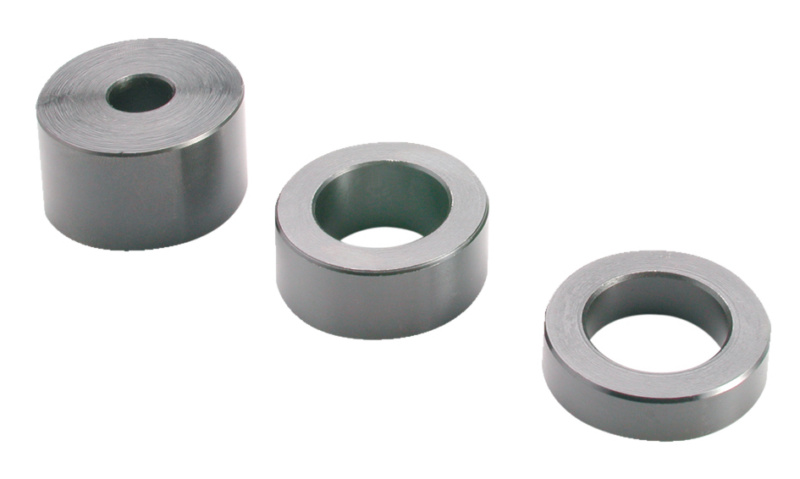

    Spacer bushing set for set of compact manual hydraulic punches
  •
