ATORN screw tap HSSE TIN DIN371 40° M10 ISO2 2.5xD CNC UNI for blind hole

ATORN screw tap HSSE TIN DIN371 40° M10 ISO2 2.5xD CNC UNI for blind hole

ATORN screw tap HSSE TIN DIN371 40° M10 ISO2 2.5xD CNC UNI for blind hole
Item no: 1014455 210

Online price:

Available for immediate delivery

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the steel, stainless steel, non-ferrous metals and cast iron material groups up to a strength of 1000 N/mm²

Execution
Structural dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = over-long shank (from M12)

Advantage
  • Universal use for maximum flexibility in use
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M10
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 100 mm
Cutting material: HSSE
Surface: TiN
Pitch: 1,5 mm
Twist angle: 40° (right)
DIN: 371
Shank diameter: 10 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 8,5 mm
Type: UNI 40 Control
Coolant supply: External
Shank square: 8 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290853

EAN no.: 4050293380408

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • Through hole screw tap M DIN 371 shape B 3xD HSS-E M7
  •
    ATORN screw tap HSSE TIN DIN371 40° M3 ISO2 2.5xD CNC UNI for blind hole
  •
    Through hole screw tap UNC DIN 371 shape B 3xD HSS-E 5/16 inch
  •
    ATORN SC mini torus mill cttr TiAlSiN 1x1x50 mm clrance 0.95x2 mm R 0.1 mm
  •
    ATORN 90° ang. milling cutter w. shaft Ø 40.0 mm/6 tooth for ind ins AD.X 1204..
  •
    ATORN 90° ang. milling cutter w. shaft Ø 25.0 mm/2 tooth for ind ins AD.X 1705..
  •
    LIZZARD Spannzange ER 20 HP Ø 3,0 Gummi abgedichtet Rundlauf 0,005 mm
  •

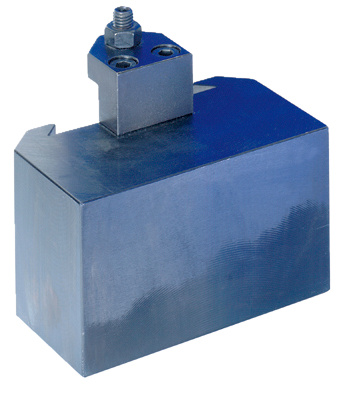

    Quick change holder type WBW size 4/60 f revolving hd RD/4+UD/4 cat. no. 21870
  •
