Blind hole screw tap M uni DIN 371 45° shape C 2.5xD PM-TiCN M5

Blind hole screw tap M uni DIN 371 45° shape C 2.5xD PM-TiCN M5

Blind hole screw tap M uni DIN 371 45° shape C 2.5xD PM-TiCN M5
Item no: 1014450 103

Online price:

Available for immediate delivery

Application
- Metric thread
- Blind holes
- Max. drilling depth 2.5xD
- For universal application, e.g. in VA, case-hardened, quenched and tempered, and tool steels, aluminium, copper and cast iron

Execution
  • Extra stable PM screw tap
  • Tolerance range 6H
  • DIN 371/376
  • DIN type C (2-3 chamfer threads)
  • HSSE-PM, TiCN-coated

Notes
Outstanding value for money.
Maximum economy.

Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread dimension: M5
Thread type x nominal diameter: M5
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance hole ≤ 3xD
Lead angle shape: C
Length: 70 mm
Cutting material: HSSE-PM
Surface: TiCN
Pitch: 0,8 mm
Twist angle: 45° (right)
DIN: 371
Shank diameter: 6 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 4,20 mm
Coolant supply: External
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €

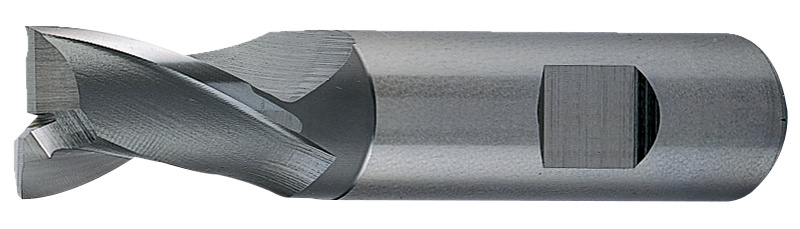

  • Square end mill str. DIN 327 D type N short 2 cut edg Z-cut HSS-E 18 mm
  •

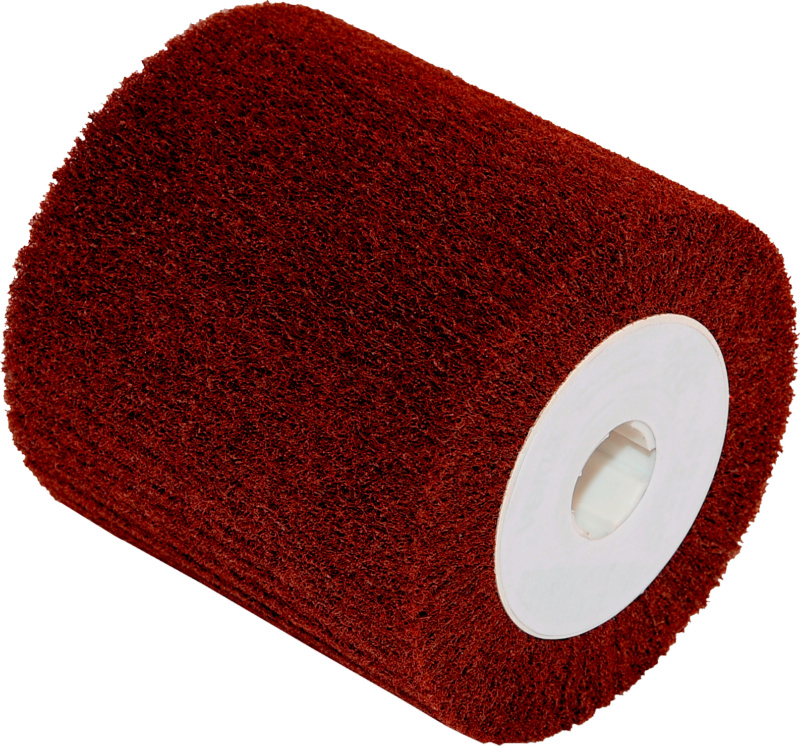

    ATORN non-woven abrasive flap wheel, synthetic corundum, 110x100x19 mm, G120
  •
    Fibre disc, ceramic abrasive grain 982C Cubitron II, dia. 125 mm, grit 36
  •

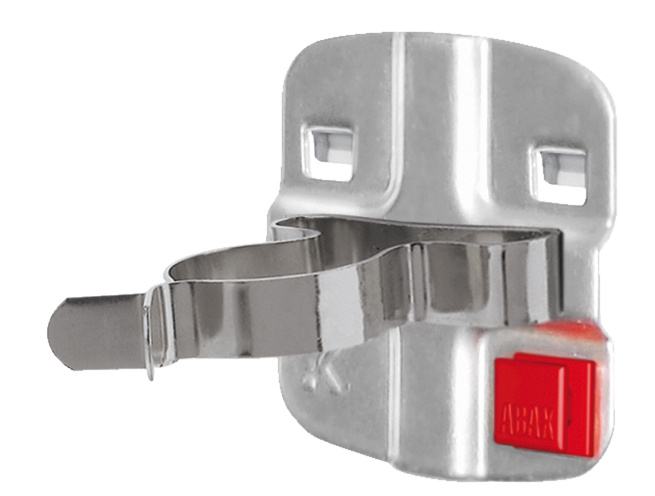

    Tool clamp single large base plate dia. 28 mm anthracite
  •

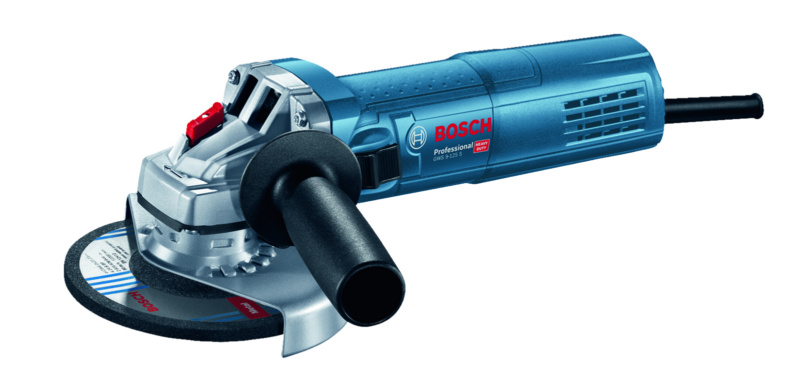

    GWS 9-125 S one-handed angle grinder dia. 125 mm 900 watts
  •
