Maschinen-Gewindebohrer Enorm 1-Z-X-IKZ-PM-GLT-1 M6-6HX

Maschinen-Gewindebohrer Enorm 1-Z-X-IKZ-PM-GLT-1 M6-6HX

Maschinen-Gewindebohrer Enorm 1-Z-X-IKZ-PM-GLT-1 M6-6HX
Item no: 1014415 203

Online price:

Available in 5-7 working days.

Application
- Metrisches Gewinde
- Grundlöcher
- Max. Bohrtiefe 3xD
- Für universelle Anwendung in nahezu allen Werkstoffen

Execution
  • Für den Einsatz in CNC-gesteuerten Maschinen ausgelegt.
  • Erhöhte Toleranz für mehr Standweg in abrasiven oder klemmenden Werkstoffen.
  • Konisch abgesetztes Führungsgewinde
  • Mit axialer Innenkühlung
  • Längere Nuten
  • DIN-Anschnitt Form C (2-3 Gänge)
  • HSSE-PM GLT-1


Brand: EMUGE
Material to be processed: Universal use
Thread type x nominal diameter: M6
Max. thread depth: 3xD
Thread dimension: M6
Pitch: 1,00 mm
Cutting material: HSSE-PM
Surface: TiAlN plus
Hole type: Blind hole ≤ 3xD
Tolerance of screw taps (Tol.): 6HX
Lead angle shape: C
Length: 80 mm
Cutting edge length: 10 mm
Core hole diameter: 5,00 mm
Shank diameter: 6,0 mm
Shank square: 4,9 mm
Thread type: Metric thread
Type: GLT-1
Twist angle: 45° (right)
DIN: 371
Coolant supply: Internal axial
Nominal diameter: 6 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Manufacturer part no.: B581A601.0060

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE B 371 0° M2 0.4 mm ISO2 D 3xD CNC P
    25,46 €
  • ATORN NC spotting drill solid carbide 120°, TiALN plus, 10.0 mm x 89 mm HB
  •
    ATORN universal drill bit set, 4 pieces, diameter 5-6-8-10 mm
  •
    Through hole screw tap M DIN 371 shape C 2.5xD HSS-E M2
  •
    Through hole screw tap M DIN 371 shape B 3xD HSS-E M2.5
    14,59 €
  • ATORN MT HSSE shape B through hole 6H BM 5
  •
    Maschinen-Gewindebohrer Enorm 1-Z-X-IKZ-PM-GLT-1 M4-6HX
  •
    Maschinen-Gewindebohrer Enorm 1-Z-X-IKZ-PM-GLT-1 M10-6HX
  •
    Through hole scr. tap MF DIN 374 shape C 3xD HSS-E nit. grey cast iron MF10x1.00
  •
    ATORN insert holder AME-R-32 AMR-04-P-T25C
    306,24 €
  • Combination spanner 15° DIN 3113 long CV steel AF 27x27 mm
    30,51 €

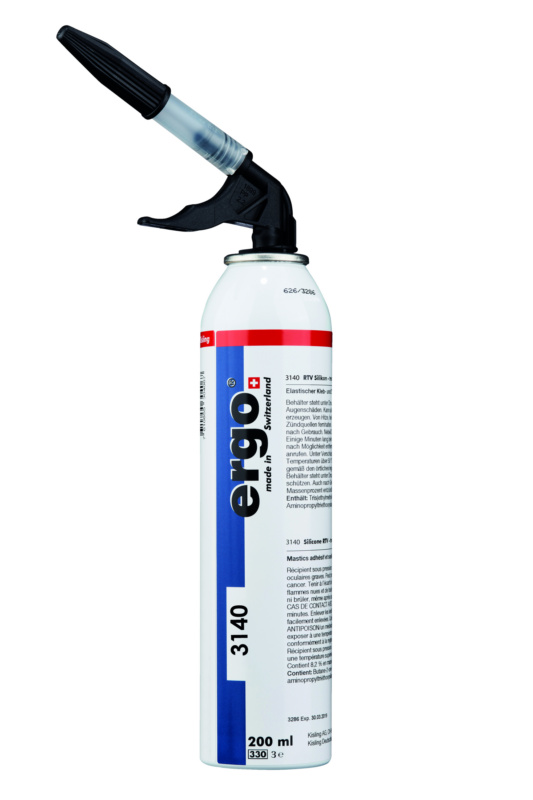

  • RTV silicone 3140 transp. press. can 200 ml
