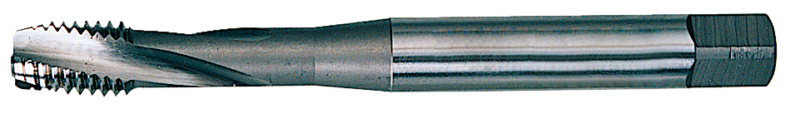

Blind hole screw tap Hyper Z spiral-fluted 43° HSS-E 3xD DIN 376 shape C 6H M 24

Blind hole screw tap Hyper Z spiral-fluted 43° HSS-E 3xD DIN 376 shape C 6H M 24

Blind hole screw tap Hyper Z spiral-fluted 43° HSS-E 3xD DIN 376 shape C 6H M 24
Item no: 1014410 017

Online price:

Available in 6-8 working days.

Application
For steels up to 1,200 N/mm².

Execution
  • Metric thread
  • Blind-hole thread
  • Right-cutting
  • Without tip
  • Spiral-fluted 43°
  • DIN 371
  • HSS-E

Notes
UNI high-performance screw taps with optimal cutting geometry, long service life and process reliability!

Brand: NACHI
Material to be processed: Copper | Steel | Aluminium | Cast metal | Thermoset plastic
Thread type x nominal diameter: M24
Max. thread depth: 2xD
Pitch: 3 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Blind hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: C
Length: 160 mm
Cutting edge length: 38,8 mm
Core hole diameter: 21,00 mm
Shank diameter: 18 mm
Shank square: 14,5 mm
Thread type: Metric thread
Type: Hyper Z
Twist angle: 43°
DIN: 376
Coolant supply: External
Nominal diameter: 24 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Manufacturer part no.: L6862 M24

Product Datasheet Datasheet cutting values
