Blind hole screw tap M DIN 376 35° shape C 2xD HSS-E M10

Blind hole screw tap M DIN 376 35° shape C 2xD HSS-E M10

Blind hole screw tap M DIN 376 35° shape C 2xD HSS-E M10
Item no: 1014403 210

Online price:

Available for immediate delivery

Application
Metric thread
Blind holes
Max. drilling depth 2xD
Steels up to 700 N/mm2

Notes
Cost-effective design.

Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: M10
Max. thread depth: 2xD
Thread dimension: M10
Pitch: 1,5 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Blind hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: C
Length: 100 mm
Cutting edge length: 15 mm
Core hole diameter: 8,50 mm
Shank diameter: 7 mm
Shank square: 5,5 mm
Thread type: Metric thread
Twist angle: 35° (right)
DIN: 376
Coolant supply: External
Nominal diameter: 10 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE B 371 0° M4 0.7 mm ISO2 D 3xD CNC PH
  •
    ATORN screw tap HSSE UltraHL B 5156 0° thread 1/8 in ISO2 D 3xD CNC UNI
  •
    ATORN RockTec PRO HPC end mill, short, KF 16x22x82 mm T=4 HB
  •
    Klarsicht-Schutzscheibe V4.0 Ø 200 mm
    61,00 €
  • 1/4 inch hexagon impact screwdriver bit DN 3129 CV special steel AF 7 mm
    6,39 €

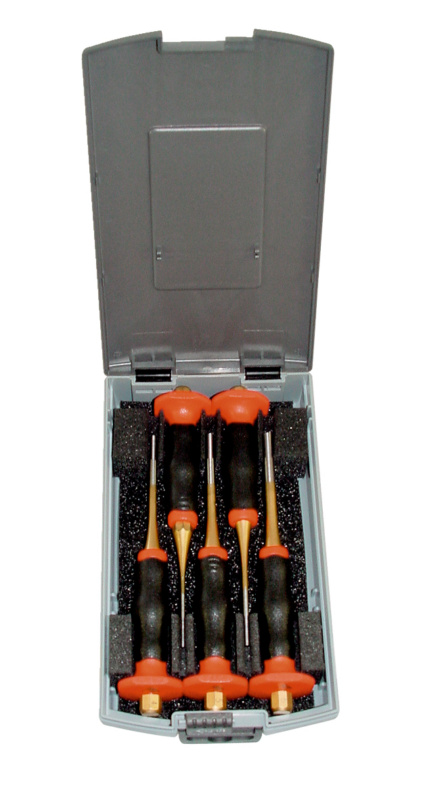

  • Pin punch with handle set, DIN 6450 5 pieces dia. 2-6 mm
  •
