Blind hole screw tap M DIN 371 35° shape C 2xD HSS-E M6

Blind hole screw tap M DIN 371 35° shape C 2xD HSS-E M6

Blind hole screw tap M DIN 371 35° shape C 2xD HSS-E M6
Item no: 1014402 108

Online price:

Available for immediate delivery

Application
Metric thread
Blind holes
Max. drilling depth 2xD
Steels up to 700 N/mm2

Notes
Cost-effective design.

Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: M6
Max. thread depth: 2xD
Thread dimension: M6
Pitch: 1 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Blind hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: C
Length: 80 mm
Cutting edge length: 10 mm
Core hole diameter: 5,00 mm
Shank diameter: 6 mm
Shank square: 4,9 mm
Thread type: Metric thread
Twist angle: 35° (right)
DIN: 371
Coolant supply: External
Nominal diameter: 6 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN STEP DRILL type N HSS vaporised DIN 338 diameter 11.00 mm
  •
    ATORN machine thread former HSSE TiN DIN 376 M16 x 2.0 mm 6HX
  •
    ATORN machine thread former HSSE TiCN DIN 376 M16 x 2.0 mm 6HX
  •
    ATORN machine thread former HSSE TiN DIN 371 M8 x 1.25 mm 6GX
  •
    ATORN machine thread former HSSE TiN DIN 376 M16 x 2.0 mm 6GX
  •
    ATORN machine thread former HSSE TiN DIN 374 MF6 x 0.75 mm 6HX
  •
    Blind hole screw tap M DIN 371 35° shape C 2xD HSS-E M3
  •
    Blind hole screw tap M DIN 371 35° shape C 2xD HSS-E M8
  •
    Blind hole screw tap M DIN 371 35° shape C 2xD HSS-E M10
  •
    1/2 inch hex screwdriver bit chromium-vanadium steel AF 19 x 60 mm
    16,20 €
  • Precision tweezers, College model, bent, rustproof anti-magnetic, length 150 mm
    43,39 €
  • Low-cut safety shoe Black Eagle® 40.1 blue-citrus Low S3 ESD sz.41 (UK 7.5)

[Text nicht gefunden]

  • Lamella flap discs (alumina-zirconia/corundum) grit 40, dia. 125 mm, max. 12,200
  •
    Lamella flap discs (alumina-zirconia/corundum) grit 60, dia. 125 mm, max. 12,200
  •

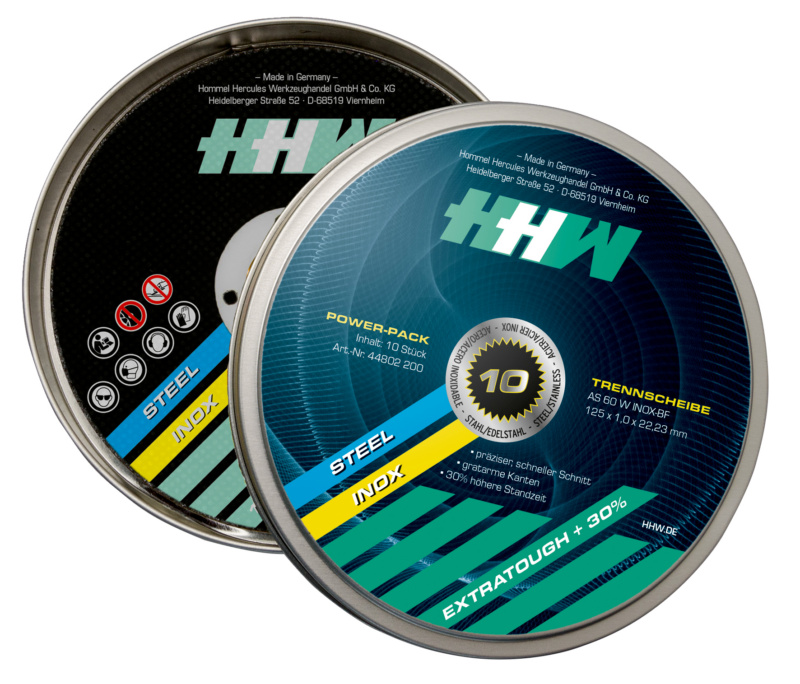

    Free-hand cutting disc, 125x1.0x22.23 mm, box of 10 f. steel and stainless steel
