Blind hole screw tap M DIN 371 15° shape C 2xD HSS-E-TiN M4

Blind hole screw tap M DIN 371 15° shape C 2xD HSS-E-TiN M4

Blind hole screw tap M DIN 371 15° shape C 2xD HSS-E-TiN M4
Item no: 1014393 104

Online price:

Still in stock: 3

Application
- Metric thread
- Blind holes
- Max. drilling depth 2xD
- Steels up to 850 N/mm²

Execution
  • With enlarged chip area
  • Tolerance range 6H
  • DIN 371/DIN 376
  • Right-hand spiral grooves approx. 15°
  • DIN type C (2-3 chamfer threads)
  • HSSE


Brand: ATORN
Material to be processed: Steel
Thread type: Metric thread
Thread dimension: M4
Thread type x nominal diameter: M4
Tolerance of screw taps (Tol.): 6H
Hole type: Blind hole ≤ 2xD
Lead angle shape: C
Length: 63 mm
Cutting material: HSSE
Surface: TiN
Pitch: 0,7 mm
Twist angle: 15° (right)
DIN: 371
Shank diameter: 4,5 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 3,30 mm
Coolant supply: External
Shank square: 3,4 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290256

EAN no.: 4050293132953

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-OX M 10
  •
    ATORN machine tap HSSE HL, 6H+0.1, 45 degrees, form C, M3.5
  •
    Blind hole screw tap M DIN 371 15° shape C 2xD HSS-E-TiCN M8
  •
    ATORN screw tap extra-long HSSE V3 C 45° 6H M18 2.5
  •
    ATORN screw tap HSSE C DIN 371 40° UNF 5/16 in 24 2B S 2.5xD CNC P
  •
    Drill and reamer extension DIN 228 B L=400 mm MK 3/3
  •

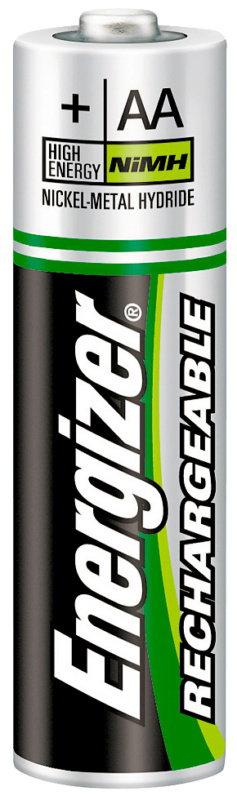

    Rechargeable battery NiMH no memory effect Mignon AA 1.2 V 2300 mAh pack=2 pcs
  •
