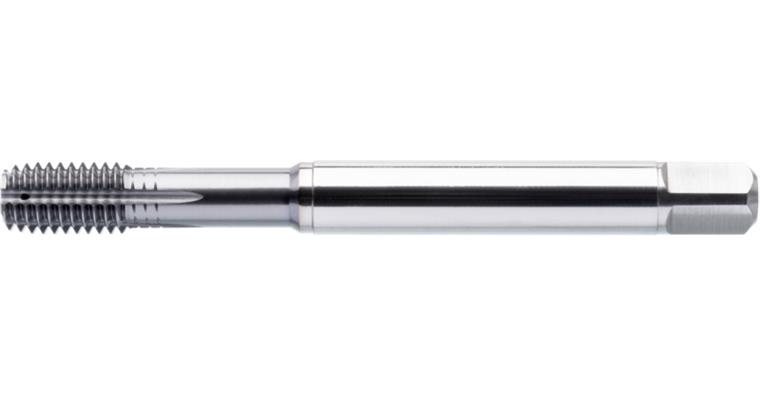

ATORN machine thread former HSSE-PM TICN 6HX M14

ATORN machine thread former HSSE-PM TICN 6HX M14

ATORN machine thread former HSSE-PM TICN 6HX M14
Item no: 1014378 116

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC and conventional machines in blind holes in the steel, stainless steel and NF metal material groups up to a strength of 1300 N/mm² with > 10% material expansion.

Execution
with oil grooves, h6 shank

Advantage
  • H6 shank for shrinking applications
  • Innovative mould geometry ensures very high dimensional accuracy and process reliability
  • High-quality, torsion-resistant HSSE PM cutting material and surface finish for very high service life requirements


Brand: ATORN
Material to be processed: Universal use
Surface: TiCN
Lead angle shape: C
Thread type: Metric thread
Thread type x nominal diameter: M14
Pitch: 2 mm
Cutting material: HSSE-PM
Core hole diameter: 13,10 mm
Length: 110 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank diameter: 11 mm
Shank square: 9 mm
Coolant supply: External
Tolerance of screw taps: ISO 2X (6HX)
Cutting speed (steel 1000) suitability (P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (P 1300 N/mm²): 1
Overall stainless steel suitability (M): 1
fitness not iron total (N): 2
Cutting speed (cast) suitability (K): 3
fitness Titan/Nickel/Super total (S): 3
Cutting speed (hard 65) suitability (H 65HRC): 3
DIN: 376

ATORN-No.: 10483578

EAN no.: 4050293537840

Product Datasheet
