Through hole screw tap SGPO (PM) DIN376 shape B 3xD HSS-PM-SG M 18

Through hole screw tap SGPO (PM) DIN376 shape B 3xD HSS-PM-SG M 18

Through hole screw tap SGPO (PM) DIN376 shape B 3xD HSS-PM-SG M 18
Item no: 1014366 014

Online price:

Available in 6-8 working days.

Application
Universal application.

Execution
  • Metric thread
  • Through-hole thread
  • Right-cutting with spiral point
  • High-quality HSS-PM with SG coating (TiCN multi-layer coating)

Notes
Screw tap for the most demanding applications. For a long service life and process reliability!

Brand: NACHI
Material to be processed: Universal use
Thread type x nominal diameter: M18
Max. thread depth: 3xD
Pitch: 2,5 mm
Cutting material: HSS-PM
Surface: TiCN
Hole type: Clearance hole ≤ 3xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 125 mm
Cutting edge length: 37,5 mm
Core hole diameter: 15,50 mm
Shank diameter: 14 mm
Shank square: 11 mm
Thread type: Metric thread
Type: SGPO
Twist angle: 0°
DIN: 376
Coolant supply: External
Nominal diameter: 18 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Manufacturer part no.: L6808 M18

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • Through hole screw tap SGPO (PM) DIN371 shape B 3xD HSS-PM-SG M 10
    37,77 €
  • Through hole screw tap SGPO (PM) DIN376 shape B 3xD HSS-PM-SG M 16
    66,96 €
  • Through hole screw tap SGPO (PM) DIN376 shape B 3xD HSS-PM-SG M 24
  •
    HSS bur cylinder, shank dia. 6 mm, serration 3, round taper, 10x20 mm
    18,01 €

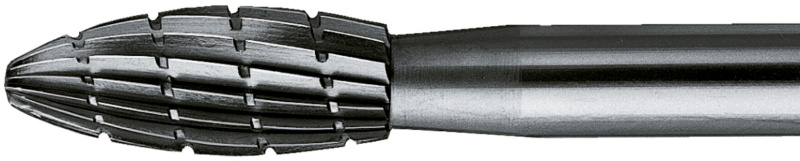

  • HSS bur flame-shaped (B), shank dia. 6mm, serration 3, head dia.xlength 12x30mm
