Machine thread former M DIN 371 shape C 2xD HSS-E-PM-TiCN with oil grooves M10

Machine thread former M DIN 371 shape C 2xD HSS-E-PM-TiCN with oil grooves M10

Machine thread former M DIN 371 shape C 2xD HSS-E-PM-TiCN with oil grooves M10
Item no: 1014363 110

Online price:

Still in stock: 5

Application
- Metric thread
- Through and blind holes
- Max. drilling depth 2xD

Execution
  • With oil grooves
  • DIN 371
  • Tolerance range 6HX
  • DIN type C (2-3 chamfer threads)
  • Synchro tool for CNC machines
  • HSSE-PM-TiCN

Notes
Synchro chuck see art. no. 21453, 21457 and 21837.
Suitable inserts see art. no. 21465-21466.

Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread dimension: M10
Thread type x nominal diameter: M10
Tolerance of screw taps (Tol.): 6HX
Hole type: Clearance hole ≤ 2xD
Lead angle shape: C
Length: 100 mm
Cutting material: HSSE-PM
Surface: TiCN
Pitch: 1,5 mm
Twist angle: 0°
DIN: 371
Shank diameter: 10 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 9,30 mm
Coolant supply: External
Shank square: 8 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290862

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Machine thread former M DIN 376 shape C 2xD HSS-E-PM-TiCN with oil grooves M12
  •
    Spring clamp XM up to 50 mm
  •
    Machine thread former M DIN 376 shape C 2xD HSS-E-PM-TiCN with oil grooves M16
  •
    Label for 83002101 colour: white
  •
    Spring clamp XM up to 25 mm
  •

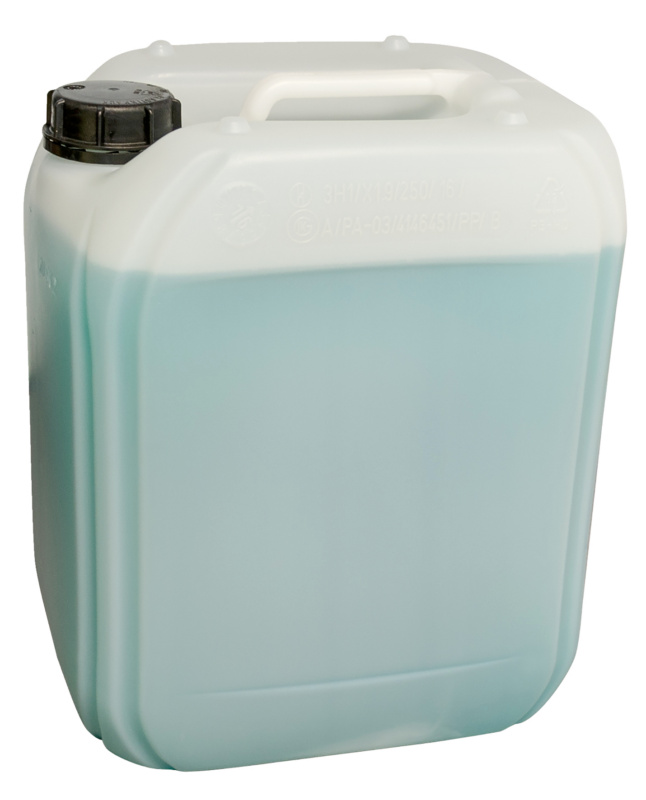

    Universal compound SC15 in canister 20 l with corrosion protection, low foaming
  •
    LIZZARD Spannzange ER 40 HP Ø 18,5 Gummi abgedichtet Rundlauf 0,005 mm
  •
    Spring clamp XM up to 75 mm
  •

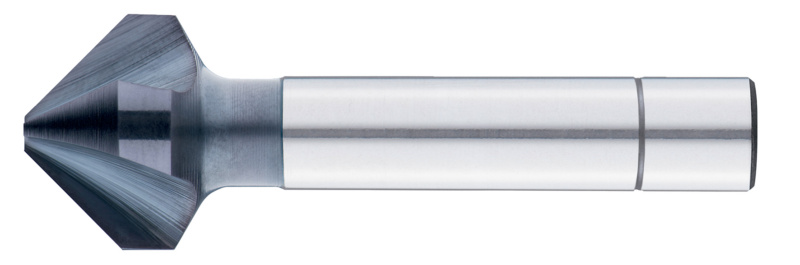

    Prec. countersink drill 90° SC Alunit DIN 335 uneven pitch dia. 12.4 mm
  •
