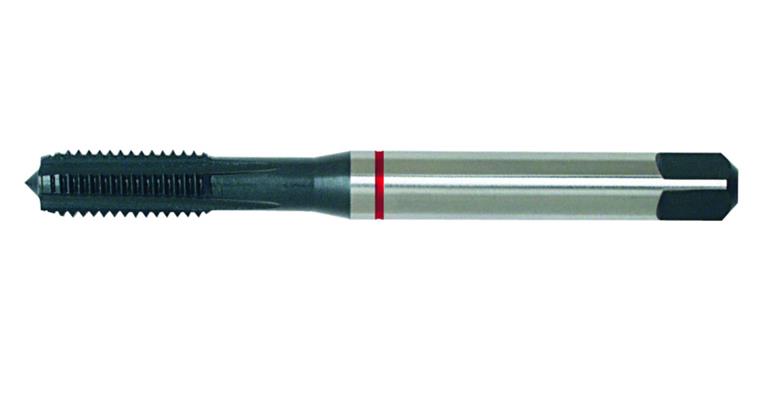

Through hole screw tap M DIN 371 shape C 2xD HSS-E nit. for grey cast iron M5

Through hole screw tap M DIN 371 shape C 2xD HSS-E nit. for grey cast iron M5

Through hole screw tap M DIN 371 shape C 2xD HSS-E nit. for grey cast iron M5
Item no: 1014358 105

Online price:

Available for immediate delivery

Application
- Metric thread
- Through holes
- Max. drilling depth 2xD
- For high cutting performance in grey cast iron

Execution
  • Without spiral point tap
  • For high cutting performance
  • Tolerance range 6HX
  • DIN 371/376
  • HSSE, nitrided


Brand: ATORN
Material to be processed: Cast metal
Thread type: Metric thread
Thread dimension: M5
Thread type x nominal diameter: M5
Tolerance of screw taps (Tol.): 6HX
Hole type: Clearance hole ≤ 2xD
Lead angle shape: C
Length: 70 mm
Cutting material: HSSE
Surface: Nitrated
Pitch: 0,8 mm
Twist angle: 0°
DIN: 371
Shank diameter: 6 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 4,20 mm
Coolant supply: External
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290182

EAN no.: 4050293132434

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • Through hole screw tap M DIN 371 shape B 3xD HSS-E vaporised VA steels M2
  •
    HSS bur cylindrical (ZYAS), shank dia. 6 mm serr. 2, head dia. x length 16x25 mm
  •
    Articulated hook wrench with fixed pin dia. 6 mm for nuts dia. 95-155 mm
    40,55 €
  • ATORN bolt cutters 460 mm with steel tube handles
  •
    ATORN bolt cutters 780 mm with steel tube handles
    134,64 €

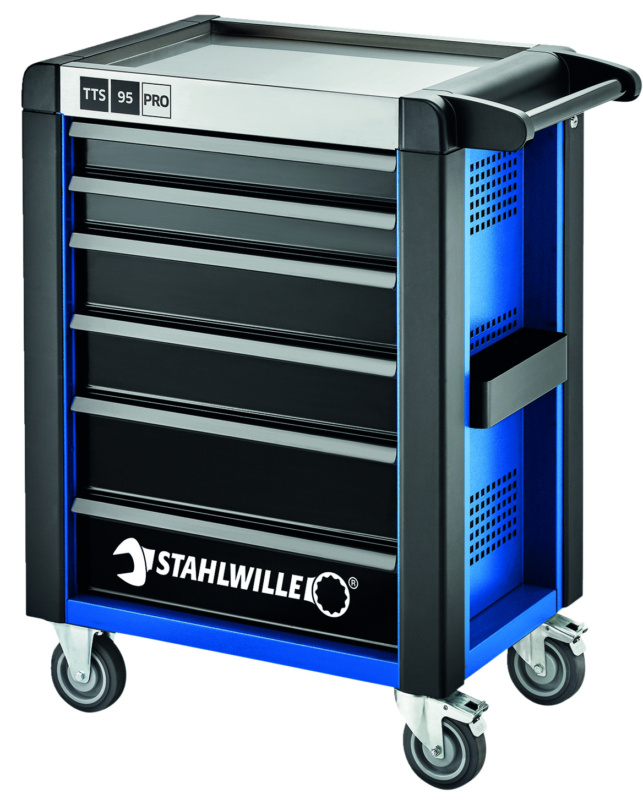

  • Tool trolley 95/6 Pro 6 drawers 496x827x1020 mm blue, RAL 270 30 35
