ATORN MT HSSE shape B through hole 6H M33

ATORN MT HSSE shape B through hole 6H M33

ATORN MT HSSE shape B through hole 6H M33
Item no: 1014346 133

Online price:

Still in stock: 1

Application
For producing metric threads on CNC machines or conventional machines in through holes in the steel, stainless steel, non-ferrous metals and cast iron material groups up to a strength of 1000 N/mm².

Execution
Structural dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = over-long shank (from M12)

Advantage
  • Universal use for maximum flexibility in use
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions

Notes
From M56 through and blind hole with cut shape C

Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M33
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 180 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 3,5 mm
Twist angle: 0°
DIN: 376
Shank diameter: 25 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 29,5 mm
Type: UNI 40 Control
Coolant supply: External
Shank square: 20 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11291110

EAN no.: 4066107000202

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN MT HSSE shape B through hole 6G M12
  •
    ATORN MT HSSE shape B through hole 6H M14
  •
    ATORN MT HSSE shape B through hole 6H M22
  •
    ATORN MT HSSE shape B through hole 6H M39
  •
    ATORN MT HSSE shape B through hole 6H M52
  •
    ATORN MT HSSE shape C blind+through hole 6H M 56
  •
    Blind hole screw tap M DIN 371 40° shape C 3xD HSS-E-TiN for VA steels M6
  •
    Maschinen-Gewindebohrer Enorm 2-Z-X-IKZ-PM-GLT-1 M6x0,75-6HX
  •

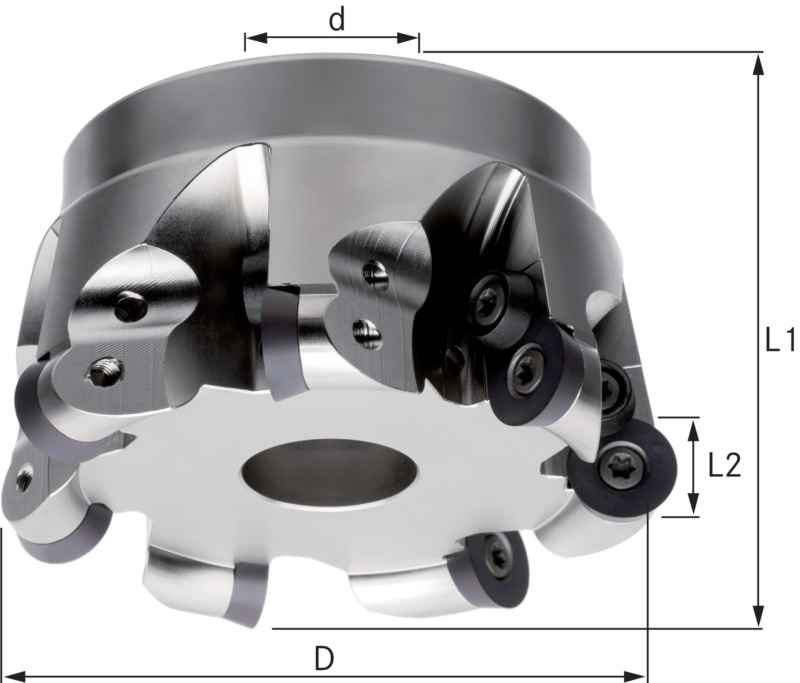

    ATORN copy blade head, diameter 80 mm, T7, d2 = 27 mm
  •
