ATORN machine tap M1.6 HSSE vaporised for through hole

ATORN machine tap M1.6 HSSE vaporised for through hole

ATORN machine tap M1.6 HSSE vaporised for through hole
Item no: 1014346 095

Online price:

Still in stock: 6

Application
For producing metric threads on CNC machines or conventional machines in through holes in the steel, stainless steel, non-ferrous metals and cast iron material groups up to a strength of 1000 N/mm².

Execution
Structural dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = over-long shank (from M12)

Advantage
  • Universal use for maximum flexibility in use
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M1.6
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 40 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 0,35 mm
Twist angle: 0°
DIN: 371
Shank diameter: 2,5 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 1,25 mm
Type: UNI 40 Control
Coolant supply: External
Shank square: 2,1 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290904

EAN no.: 4050293415377

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN machine tap M1.2 HSSE vaporised for through hole
  •
    ATORN machine tap M 30 HSSE vaporised for through hole
    174,02 €
  • HHW VDI HOLDER 69880 B8AK-30X20X40
  •
    Triangular engineer's file DIN 7261 C length 100 mm cut 3
  •
    Square engineer's file DIN 7261 D length 300 mm cut 1
  •
    Square engineer's file DIN 7261 D length 100 mm cut 3
  •

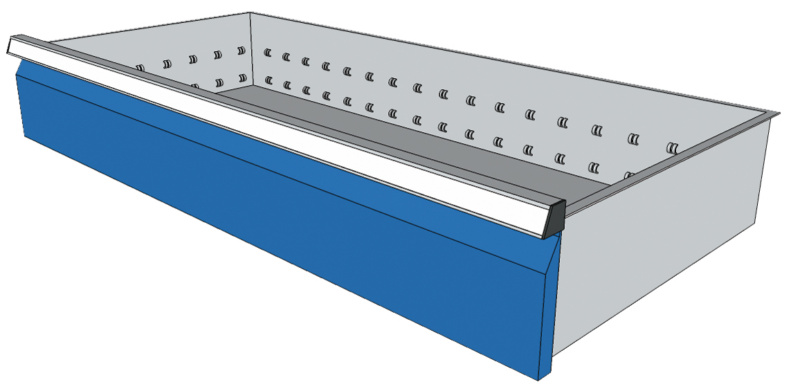

    Drawer WxD 450x600mm full-exten. sl. 100 % 180kg front height 250mm RAL7035/7016
  •
