Through hole scr. tap M DIN 371 shape B 1.5xD HSS-E with lubrication grooves M3

Through hole scr. tap M DIN 371 shape B 1.5xD HSS-E with lubrication grooves M3

Through hole scr. tap M DIN 371 shape B 1.5xD HSS-E with lubrication grooves M3
Item no: 1014330 104

Online price:

Available in 6-8 working days.

Application
- Metric thread
- Through holes
- Max. drilling depth 1.5xD
- Steels up to 800 N/mm²

Execution
  • Spiral point
  • Lubrication grooves
  • Reduced build-up of material deposits thanks to nitriding and steam treatment
  • Tolerance field 6H
  • DIN 371
  • DIN chamfer shape B (3.5-5 turns)
  • HSS-E

Notes
Ideal for creating eyelets in sheet metal.

Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: M3
Max. thread depth: 2xD
Thread dimension: M3
Pitch: 0,5 mm
Cutting material: HSSE
Surface: Vaporised
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 56 mm
Cutting edge length: 11 mm
Core hole diameter: 2,50 mm
Shank diameter: 3,5 mm
Shank square: 2,7 mm
Thread type: Metric thread
Twist angle: 0°
DIN: 371
Coolant supply: External
Nominal diameter: 3 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

EAN no.: 4024496021369

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • ATORN twist drill VA HSSE, DIN 338, 0.4 mm x 20 mm x 5 mm, 130°
  •
    ATORN twist drill VA HSSE, DIN 338, 5.0 mm x 86 mm x 52 mm, 130°
  •
    ATORN twist drill bit VA HSSE TiAlNplus DIN 338 diameter 1 mm
  •
    ATORN twist drill bit VA HSSE TiAlNplus DIN 338 diameter 5 mm
  •
    ATORN vernier calipers IP67 electr. 150 mm depth gauge flat
    135,00 €

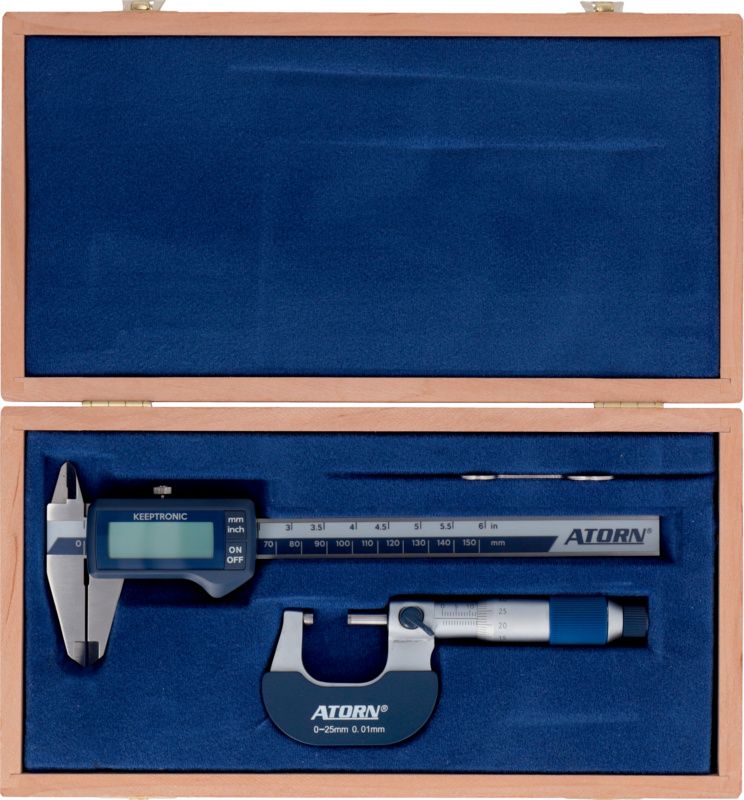

  • ATORN 2-piece measuring instrument set, wooden case, digital vernier callipers
  •
