ATORN screw tap HSSE vaporised shape C M10 x 1.5 mm long for blind hole

ATORN screw tap HSSE vaporised shape C M10 x 1.5 mm long for blind hole

ATORN screw tap HSSE vaporised shape C M10 x 1.5 mm long for blind hole
Item no: 1014328 210

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the steel, stainless steel, non-ferrous metals and cast material groups up to a strength of 1000 N/mm².

Advantage
  • Universal use for maximum flexibility
  • Innovative cutting geometry ensures high process reliability even under difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M10
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 200 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 1,5 mm
Twist angle: 40° (right)
Shank diameter: 10 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 8,5 mm
Type: UNI 40 Control
Coolant supply: External
Shank square: 8 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11291067

EAN no.: 4050293560435

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE B 376 0° M2.3 0.4 mm ISO2 D 3xD P
  •
    ATORN screw tap HSSE C 374 0° MF8 1.0 mm ISO2 D/S 2xD CNC P
  •
    ATORN test pin RSB TC1 1.7 mm x 70 mm
    12,70 €

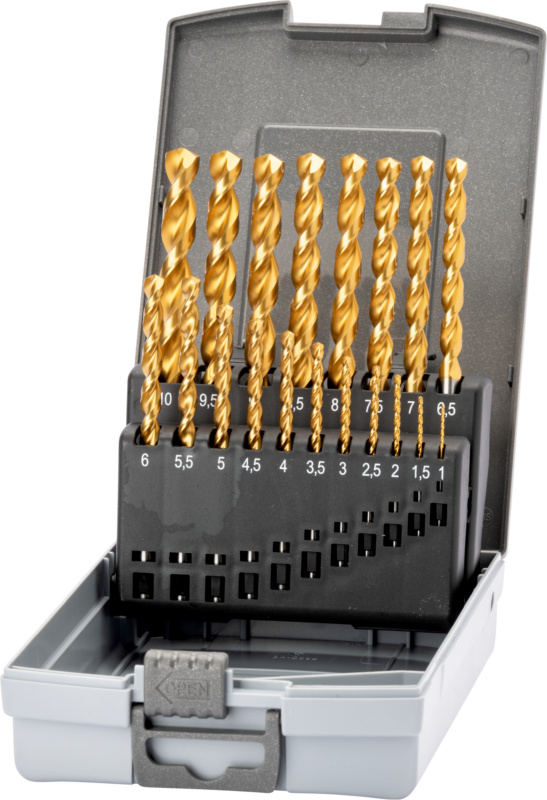

  • ATORN twist drill bit set TLP HSSE-TIN DIN 338 1.0-10.0 mm 0.5 in box
  •
