ATORN machine tap HSSE HL, 6H+0.1, 45 degrees, form C, M24

ATORN machine tap HSSE HL, 6H+0.1, 45 degrees, form C, M24

ATORN machine tap HSSE HL, 6H+0.1, 45 degrees, form C, M24
Item no: 1014324 215

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC machines or conventional machines in blind holes in steel, stainless steel, non-ferrous metals, cast iron and special alloys up to 1200 N/mm².

Advantage
  • Ideal for long service life requirements and materials that are difficult to machine, such as stainless steel
  • Innovative cutting geometry and ULTRA HL coating guarantee high process reliability even under difficult machining conditions


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M24
Tolerance of screw taps (Tol.): 6H+0.1
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 160,00 mm
Cutting material: HSSE
Surface: ULTRA HL
Pitch: 3 mm
Twist angle: 45° (right)
DIN: 376
Shank diameter: 18 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 21,00 mm
Type: UNI MAX 45HL Control
Coolant supply: External
Shank square: 14,50 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10487116

EAN no.: 4050293649789

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN high-perf. drill, SC TiAlN, HPC 16xD 8.0 mm x 8 mm x 180 mm HA internal
  •
    ATORN high-perf. drill, SC TiAlN, HPC 25xD 3.2 mm x 6 mm x 135 mm HA internal
  •
    ATORN SC TiAlNplus high-feed drill, 3xD diameter 12.8 mm, HA shaft, with IC
  •
    ATORN machine thread former IC HSSE TiCN DIN 374 MF8 x 1.0 mm 6HX
  •
    ATORN machine thread former IC HSSE TiCN DIN 374 MF12 x 1.5 mm 6HX
  •
    Blind hole screw tap M DIN 371 15° shape C 2xD HSS-E M8
  •
    Blind hole screw tap M DIN 376 15° shape C 2xD HSS-E M14
  •
    Blind hole screw tap M DIN 371 35° shape C 2xD HSS-E M8
  •
    ATORN RockTec PRO HPC end mill, long, KF 6x18x23x62 mm T=4 HB
  •
    ATORN SCLC boring bar, solid carbide, positive, left, C 04 G SCLC R/L 03
  •

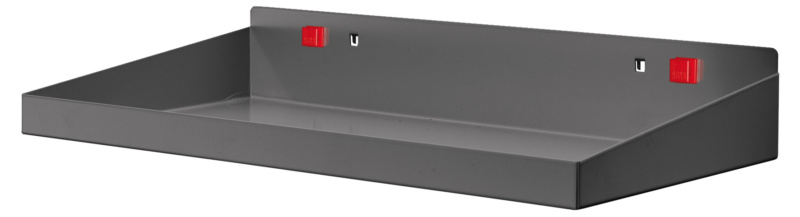

    Steel shelf with anti-roll-off edging width x depth 490 x 243 mm anthracite
  •
