Through hole screw tap M DIN 376 shape B 1.5xD HSS-E-TiN for VA steels M16

Through hole screw tap M DIN 376 shape B 1.5xD HSS-E-TiN for VA steels M16

Through hole screw tap M DIN 376 shape B 1.5xD HSS-E-TiN for VA steels M16
Item no: 1014320 109

Online price:

Still in stock: 2

Application
- Metric thread
- Through holes
- Max. drilling depth 1.5xD
- VA steels up to 1,200 N/mm²

Execution
  • Spiral point
  • Improved wear characteristics thanks to TiN coating
  • Tolerance field 6H
  • DIN 376
  • HSS-E TiN


Brand: LIZZARD
Material to be processed: Stainless steel
Thread type x nominal diameter: M16
Max. thread depth: 1.5xD
Thread dimension: M16
Pitch: 2 mm
Cutting material: HSSE
Surface: TiN
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 110 mm
Cutting edge length: 32 mm
Core hole diameter: 14,00 mm
Shank diameter: 12 mm
Shank square: 9 mm
Thread type: Metric thread
Twist angle: 0°
DIN: 376
Coolant supply: External
Nominal diameter: 16 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Versions
loading
Keywords:

[Text nicht gefunden]

  • Through hole screw tap M DIN 376 shape B 1.5xD HSS-E-TiN for VA steels M12
  •
    Through hole screw tap M DIN 376 shape B 1.5xD HSS-E-TiN for VA steels M20
  •
    Maschinen-Gewindebohrer Enorm 2-Z/E-X-PM-GLT-1 M14x1,5-6HX
  •
    Through hole screw tap G DIN 5156 shape B 2.5xD HSS-E 3/4 inch
  •
    Machine tap G DIN 5156 shape C 2.5xD HSS-E 3/4 inch
  •
    ATORN thr. mill. cutt., SC-TIAlN TH/BH 2xD 4.65 mm 1 mm 58 mm HA UNI
  •
    Precision needle files assortment, 12 pieces, length 140 mm, cut 2, in stand
  •
    Single open-end wrench 15° DIN 894 special steel AF 13 mm
    2,03 €

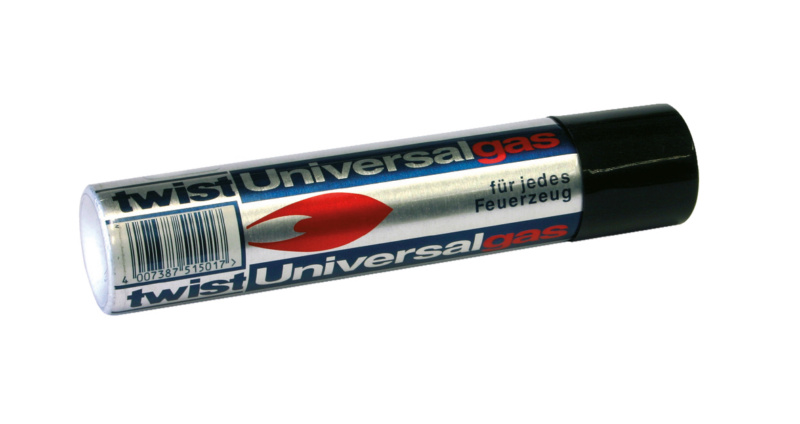

  • Gas cartridge for soldering sets INDEPENDENT, butane gas for cat. no. 70032
  •
