Through hole screw tap M DIN 371 shape B 3xD HSS-E-TiN for VA steels M3

Through hole screw tap M DIN 371 shape B 3xD HSS-E-TiN for VA steels M3

Through hole screw tap M DIN 371 shape B 3xD HSS-E-TiN for VA steels M3
Item no: 1014318 203

Online price:

Available for immediate delivery

Application
- Metric thread
- Through holes
- Max. drilling depth 3xD
- VA steels up to 1,200 N/mm²

Execution
  • Spiral point tap
  • TiN-coated for even longer service life
  • Tolerance range 6H
  • DIN 371/376
  • HSSE, TiN-coated

Notes
Very well suited for VA machining.

Brand: ATORN
Material to be processed: Stainless steel
Thread type: Metric thread
Thread type x nominal diameter: M3
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 56 mm
Cutting material: HSSE
Surface: TiN
Pitch: 0,5 mm
Twist angle: 0°
DIN: 371
Shank diameter: 3,5 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 2,50 mm
Coolant supply: External
Shank square: 2,7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

Versions
loading
Keywords:

[Text nicht gefunden]

  • Hand tap DIN 2181 no. 1 taper tap HSS MF 20x1.50
  •
    ATORN RockTec PRO mini end mill, long neck 1.2x1.8x16x50 mm T=2 HA
  •
    ATORN RockTec PRO mini end mill, long neck 1.5x2.3x12x50 mm T=2 HA
  •

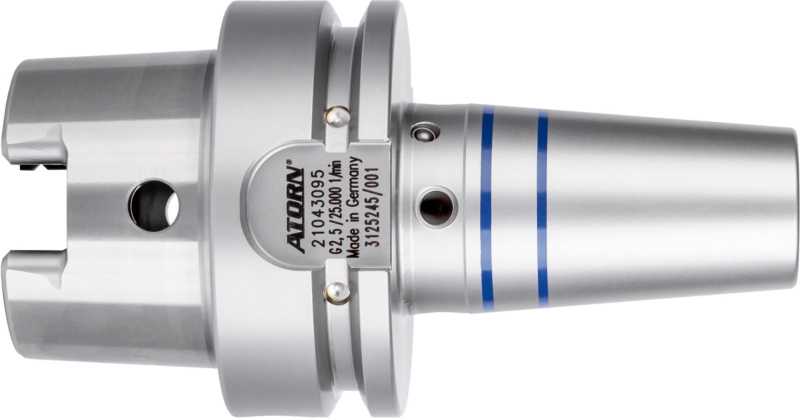

    ATORN shrink-fit chuck HSK63 (ISO 12164) KKB diameter 6 mm A=80 mm
  •
    Square longitudinal mount, shank dia. 50 mm, left, shape C4, DIN 69880, part 4
  •
    TC bur, spherical (KUD), shank dia. 3, serration 4, head dia.xL 6x5 mm
  •
    TC bur spherical (KUD), shank dia. 6 mm, serration 4, head dia.xlength 6x5 mm
  •
    TC bur spherical (KUD), shank dia. 6 mm, serration 5, head dia.xlength 6x5 mm
  •
    TC bur spherical (KUD), shank dia. 6 mm, serration 5, head dia.xlength 8x7 mm
  •
    1/2 inch bi-hexagon socket DIN 3124 CV steel AF 26 mm
  •

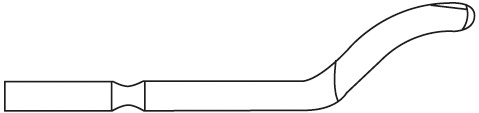

    Replacement blade E, shank dia. 3.2 mm, E100 HSS left for steel, alum., plastic
  •
