Through hole screw tap M DIN 376 shape B 1.5xD HSS-E M10

Through hole screw tap M DIN 376 shape B 1.5xD HSS-E M10

Through hole screw tap M DIN 376 shape B 1.5xD HSS-E M10
Item no: 1014303 115

Online price:

Still in stock: 2

Application
Metric thread
Through holes
Max. drilling depth 1.5xD
Steels up to 800 N/mm2

Execution
Spiral point


Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: M10
Max. thread depth: 1.5xD
Thread dimension: M10
Pitch: 1,5 mm
Cutting material: HSS
Surface: Uncoated
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 100 mm
Cutting edge length: 24 mm
Core hole diameter: 8,50 mm
Shank diameter: 7 mm
Shank square: 5,5 mm
Thread type: Metric thread
Twist angle: 0°
DIN: 376
Coolant supply: External
Nominal diameter: 10 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Versions
loading
Keywords:

[Text nicht gefunden]

  • Through hole screw tap M DIN 376 shape B 1.5xD HSS-E M42
  •
    Blind hole screw tap M DIN 371 15° shape C 1.5xD HSS-E M8
  •
    Blind hole screw tap M DIN 371 40° shape C 2.5xD HSS-E M3
  •
    Blind hole screw tap M DIN 371 40° shape C 2.5xD HSS-E M8
  •
    Blind hole screw tap M DIN 376 40° shape C 2.5xD HSS-E M5
  •
    Blind hole screw tap M DIN 376 40° shape C 2.5xD HSS-E M8
  •
    Blind hole screw tap M DIN 371 40° shape C 2xD HSS-E-OX M4
  •

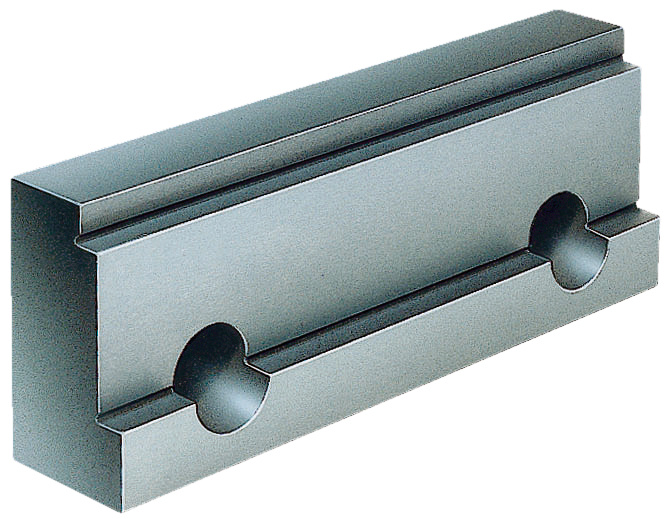

    Precision stepped jaw for Hydro-M vice type SM, NC, UNC BB125 mm
  •
