Through hole screw tap M DIN 371 shape C 2.5xD HSS-E M4

Through hole screw tap M DIN 371 shape C 2.5xD HSS-E M4

Through hole screw tap M DIN 371 shape C 2.5xD HSS-E M4
Item no: 1014291 104

Online price:

Available for immediate delivery

Application
Metric thread, through holes, max. drilling depth 2.5xD, steels up to 800 N/mm2

Execution
  • Spiral point tap
  • Tolerance range ISO 2 (6H)
  • DIN 371/DIN 376
  • DIN type C (2-3 chamfer threads)
  • HSSE


Brand: ATORN
Material to be processed: Steel
Thread type: Metric thread
Thread dimension: M4
Thread type x nominal diameter: M4
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance hole ≤ 2xD
Lead angle shape: C
Length: 63 mm
Cutting material: HSSE
Surface: Uncoated
Pitch: 0,7 mm
Twist angle: 0°
DIN: 371
Shank diameter: 4,5 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 3,30 mm
Coolant supply: External
Shank square: 3,4 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290163

EAN no.: 4050293132311

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • Hand tap set 3 pieces DIN 352 HSS-E M6
  •

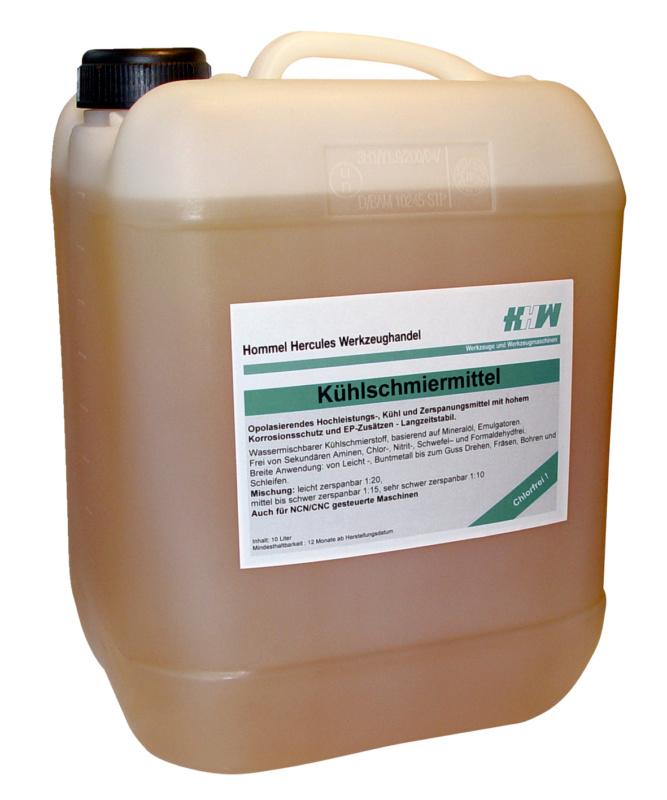

    Coolant 10 litre foam-resistant ideal for CNC machines
  •
