Hand tap DIN 352 no. 1 taper tap HSS polished M18

Hand tap DIN 352 no. 1 taper tap HSS polished M18

Hand tap DIN 352 no. 1 taper tap HSS polished M18
Item no: 1014026 124

Online price:

Available in 8-10 working days.

Application
For production of standard ISO DIN 13 metric threads. For unalloyed and low-alloy steels up to 800 N/mm² strength.

Execution
  • Taper tap with chamfer shape A with one ring
  • Right-cutting
  • Straight-grooved
  • HSS, ground


Brand: LIZZARD
Thread type x nominal diameter: M18
Pitch: 2,5 mm
Core hole diameter: 15,50 mm
Length: 95 mm
Shank diameter: 14 mm
Shank square: 11 mm
Colour ring system: Steels
Design: Taper tap
Shank style: Cylindrical with square drive
Thread type: Metric thread
Lead angle shape: A
DIN: 352
Cutting material: HSS
Cutting direction: Right-hand cutting
Hole type: Clearance/blind hole ≤ 2.5xD
Surface: Uncoated
Tolerance of screw taps: 6H
Nominal diameter: 18 mm
Twist angle: 0°

EAN no.: 4024496017546

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • High-performance three-jaw drill chuck type NCBF taper chuck B18V 3-16 mm
  •
    Hand tap DIN 352 no. 1 taper tap HSS polished M30
  •
    ATORN hexagon screwdriver set, 7 pieces, 2.5-10 mm in foldaway hand case
  •
    Hand tap DIN 352 no. 1 taper tap HSS polished M22
  •
    Work swivel chair Unitec with castors seat height 440-620 mm integral foam
  •
    KNIPEX precision circlip pliers set, 4 pieces in tool roll J1/J2/A1/A2
  •
    ATORN threading die HSS M20 2.5 mm 45 mm 6g 22568
    45,84 €
  • ATORN hexagon screwdriver set, 10 pieces, 2-14 mm, in plastic bag
  •

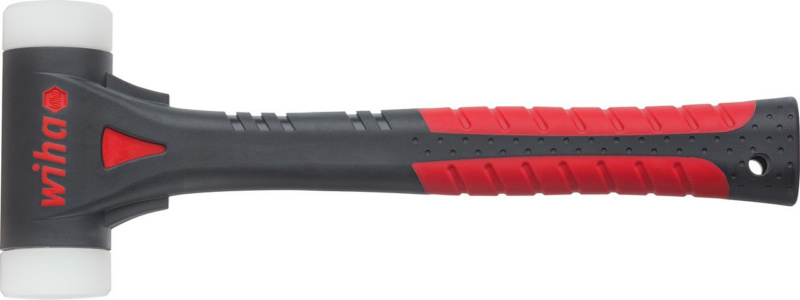

    Soft-face hammer non-recoil SEFibreBuzz size 40 mm weight approx. 700 g
  •
