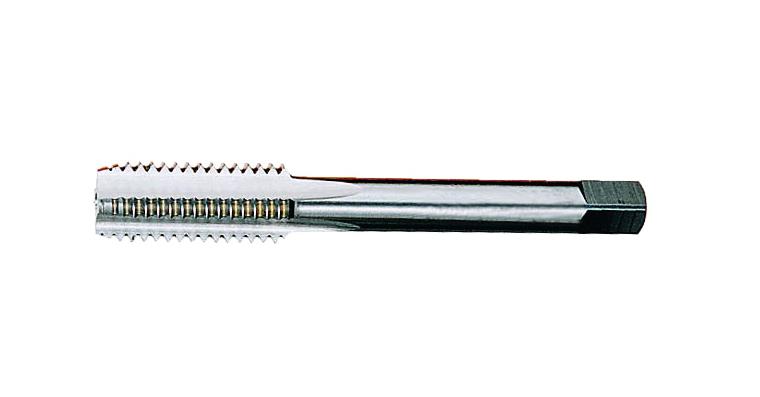

Hand tap DIN 352 F third tap HSS M5

Hand tap DIN 352 F third tap HSS M5

Hand tap DIN 352 F third tap HSS M5
Item no: 1014020 114

Online price:

Available for immediate delivery

Application
For production of standard ISO DIN 13 metric threads. For unalloyed and low-alloy steels up to 800 N/mm² strength.

Execution
  • Third tap with chamfer shape C without ring
  • Right-cutting
  • Straight-grooved
  • Up to M 1.4 tolerance field ISO 1 (4H)
  • HSS, ground


Brand: LIZZARD
Thread type x nominal diameter: M5
Pitch: 0,8 mm
Core hole diameter: 4,20 mm
Length: 50 mm
Shank diameter: 6 mm
Shank square: 4,9 mm
Colour ring system: Steels
Design: Third tap
Shank style: Cylindrical with square drive
Thread type: Metric thread
Lead angle shape: C
DIN: 352
Cutting material: HSS
Cutting direction: Right-hand cutting
Hole type: Clearance hole ≤ 2xD
Surface: Uncoated
Tolerance of screw taps: 6H
Nominal diameter: 5 mm
Twist angle: 0°

EAN no.: 4024496016891

Product Datasheet
