Hand tap DIN 352 no. 2 second tap HSS M14

Hand tap DIN 352 no. 2 second tap HSS M14

Hand tap DIN 352 no. 2 second tap HSS M14
Item no: 1014019 123

Online price:

Available in 6-8 working days.

Application
For production of standard ISO DIN 13 metric threads. For unalloyed and low-alloy steels up to 800 N/mm² strength.

Execution
  • Second tap with chamfer shape D with two rings
  • Right-cutting
  • Straight-grooved
  • Up to M 1.4 tolerance field ISO 1 (4H)
  • HSS, ground


Brand: LIZZARD
Thread type x nominal diameter: M14
Pitch: 2 mm
Core hole diameter: 12,00 mm
Length: 80 mm
Shank diameter: 11 mm
Shank square: 9 mm
Colour ring system: Steels
Design: Second tap
Shank style: Cylindrical with square drive
Thread type: Metric thread
Lead angle shape: D
DIN: 352
Cutting material: HSS
Cutting direction: Right-hand cutting
Hole type: Clearance hole ≤ 2xD
Surface: Uncoated
Tolerance of screw taps: 6H
Nominal diameter: 14 mm
Twist angle: 0°

EAN no.: 4024496016648

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Hand tap DIN 352 no. 2 second tap HSS M11
  •

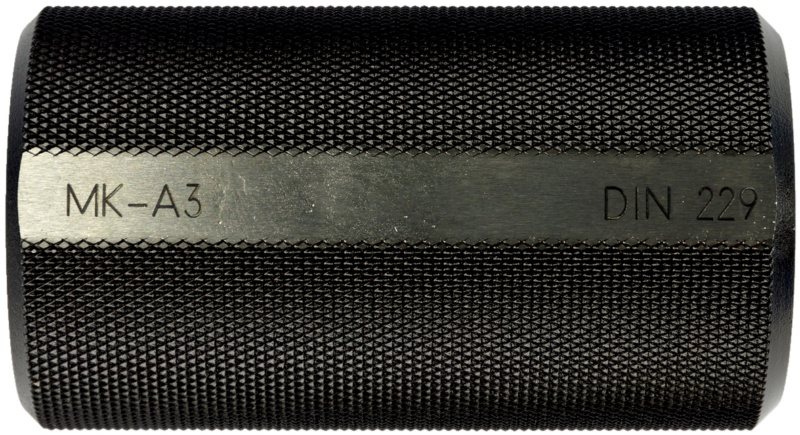

    Taper ring gauge DIN 229 w/o cloth for MK 1, for testing int. + ext. tapers
  •
