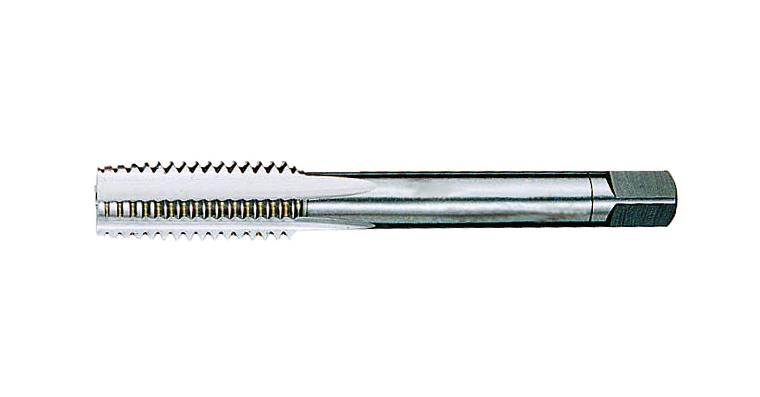

Hand tap DIN 352 no. 1 taper tap HSS M24

Hand tap DIN 352 no. 1 taper tap HSS M24

Hand tap DIN 352 no. 1 taper tap HSS M24
Item no: 1014018 133

Online price:

Available in 6-8 working days.

Application
For production of standard ISO DIN 13 metric threads. For unalloyed and low-alloy steels up to 800 N/mm² strength.

Execution
  • Taper tap with chamfer shape A with one ring
  • Right-cutting
  • Straight-grooved
  • Up to M 1.4 tolerance field ISO 1 (4H)
  • HSS, ground


Brand: LIZZARD
Thread type x nominal diameter: M24
Pitch: 3 mm
Core hole diameter: 21,00 mm
Length: 110 mm
Shank diameter: 18 mm
Shank square: 14,5 mm
Colour ring system: Steels
Design: Taper tap
Shank style: Cylindrical with square drive
Thread type: Metric thread
Lead angle shape: A
DIN: 352
Cutting material: HSS
Cutting direction: Right-hand cutting
Hole type: Clearance hole ≤ 2xD
Coolant supply: External
Surface: Uncoated
Tolerance of screw taps: 6H
Nominal diameter: 24 mm
Twist angle: 0°

EAN no.: 4024496016365

Product Datasheet
