ATORN HPC reamer, solid carbide TIALN through hole diameter 8.00 mm H7

ATORN HPC reamer, solid carbide TIALN through hole diameter 8.00 mm H7

ATORN HPC reamer, solid carbide TIALN through hole diameter 8.00 mm H7
Item no: 1013523 105

Online price:

Still in stock: 3

Application
for cutting fit tolerances in through holes on modern CNC machines with steady tool and workpiece clamping, in stainless steel.

Execution
7–8° left-hand spiral, extremely variable pitch and inner cooling, type B

Advantage
  • Innovative cutting geometry provides very high stability and process reliability, with very high cutting parameters
  • High-quality solid carbide cutting material and coating ensure a very long service life
  • Internal cooling ensures optimal transportation of chips

Notes
Make sure that tools are accurately and tightly clamped (ideally use a hydro-mechanical clamping chuck or precision collet chuck). Note: Please refer to dimension table.

Brand: ATORN
Material to be processed: Stainless steel
Cutting edge diameter: 8 mm
Tolerance of fit: H7
Type: HPC VA
Suitable for through hole: Yes
Form: B
Suitable for blind hole: No
Groove type: Left-hand twist, 7-8°
Number of cutting edges: 6 PCS
Surface: TiAlN
Cutting material: SC
Projecting length: 62 mm
Length: 100 mm
Shank diameter: 8 mm
Coolant supply: Internal
Min./max. diameter (Ø): 4.0-20.0 mm

ATORN-No.: 12160755

EAN no.: 4050293624700

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN HPC reamer, solid carbide TIALN through hole diameter 4.00 mm H7
  •
    ATORN HPC reamer, solid carbide TIALN through hole diameter 5.00 mm H7
  •
    ATORN HPC reamer, solid carbide TIALN through hole diameter 6.00 mm H7
  •
    ATORN HPC reamer, solid carbide TIALN through hole diameter 7.00 mm H7
  •
    ATORN HPC reamer, solid carbide TIALN through hole diameter 9.00 mm H7
    226,80 €
  • ATORN HPC reamer, hard, Dulo/Salo, solid carbide TIALN diameter 7.00 mm H7
  •
    ATORN HPC reamer, hard, Dulo/Salo, solid carbide TIALN diameter 9.00 mm H7
  •
    Disc milling cutter DIN 885 A type N HSS-E 100x16 mm
  •
    ATORN reducing sleeve 32mm d1= 3mm
  •
    OPT-I-STORE insert 260x345x30mm for TX® hex key set no. 59621 101
  •
    OPT-I-STORE insert 260x345x30mm for circlip pliers set cat. no. 59690 102
  •

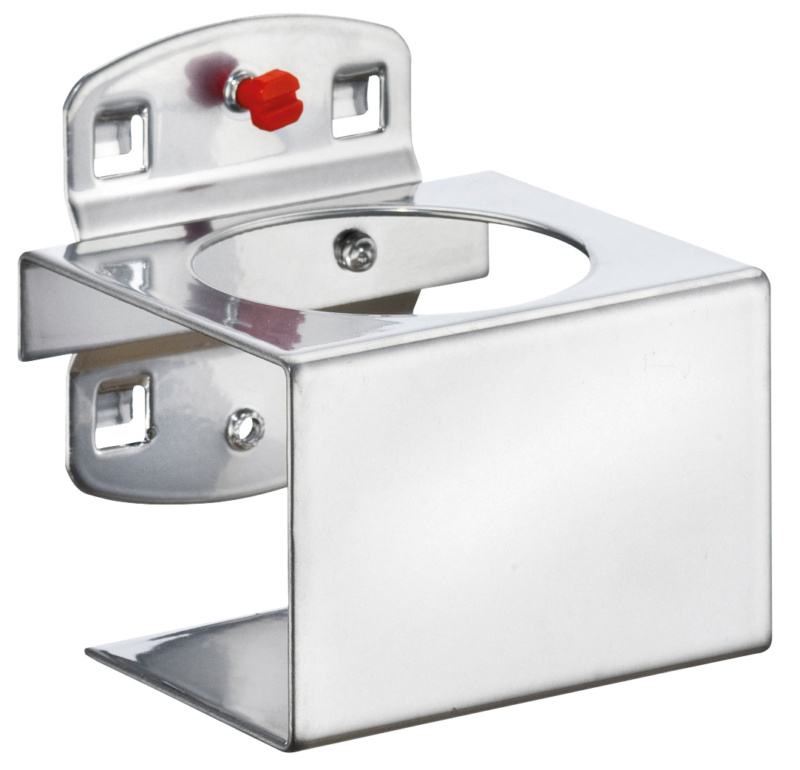

    Spray bottle holder 76x1x52mm alu.-coloured f. LogoChart cat. no. 82490 101-103
