Machine reamer DIN 8051 carbide K10 straight-grooved MK4 34 mm

Machine reamer DIN 8051 carbide K10 straight-grooved MK4 34 mm

Machine reamer DIN 8051 carbide K10 straight-grooved MK4 34 mm
Item no: 1013518 129

Online price:

Available in 5-7 working days.

Execution
  • With Morse taper
  • Straight-grooved
  • Right-cutting
  • Short cutting edges (carbide-tipped, grade K 10)
  • Accuracy H7

Notes
Art. no. 1013518 101–103 not standardised. Intermediate dimensions deliverable on request.

Brand: LIZZARD
Cutting edge diameter: 34 mm
Tolerance of fit: H7
Groove type: Straight
Morse taper size: MK 4
Length: 321 mm
Cutting edge length: 30 mm
Tool holding device: Morse taper shank
Shank style: Morse taper
Cutting material: HM K10
f steel 1300: 0,4 mm/r
Coolant supply: External
Cutting direction: Right-hand cutting
Form: Straight
Surface: Uncoated

Versions
loading
Keywords:

[Text nicht gefunden]

  • Machine reamer DIN 8051 carbide K10 straight-grooved MK1 11 mm
  •
    Machine reamer DIN 8051 carbide K10 straight-grooved MK2 16 mm
  •
    Machine reamer DIN 8051 carbide K10 straight-grooved MK2 18 mm
  •
    Machine reamer DIN 8051 carbide K10 straight-grooved MK4 38 mm
  •
    Through hole machine nut tap M DIN 357 2xD HSS-E M16
    97,41 €
  • ATORN slotted screwdriver 1.0 x 5.5 x 125/232 mm, round blade
  •
    ATORN slotted screwdriver 1.2 x 6.5 x 150/269 mm, round blade
  •
    ATORN slotted screwdriver 1.0 x 5.5 x 200/307 mm, round blade
  •
    Octagonal point chisel DIN 7256 CV air-hardening steel dia. x length 18x300 mm
  •
    Octagonal point chisel DIN 7256 CV air-hardening steel dia. x length 20x400 mm
  •
    Edelstahl-Blindniete Flachrundkopf DIN 7337 Pack=500 St. 4x10 mm
    120,57 €

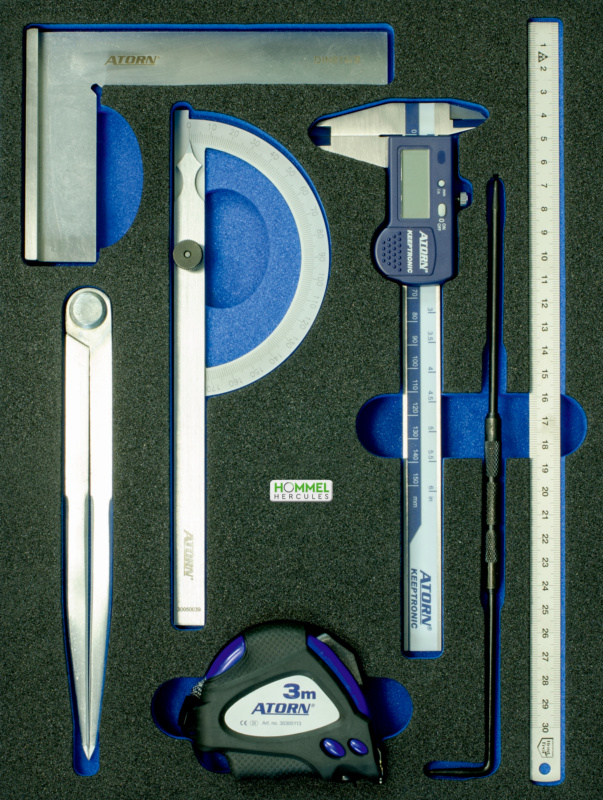

  • Measuring tool set digital 7 pieces in OPT-I-STORE insert 260x345x30mm
