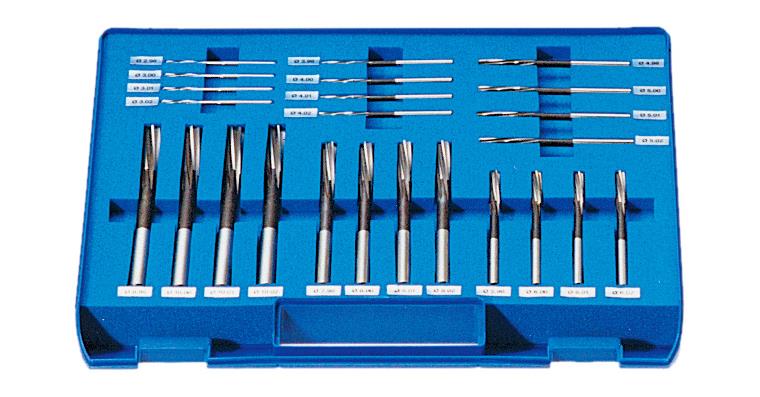

ATORN 1/100 machine reamer set, HSSE, DIN 212, 0.98 - 5.02 mm, 0 - 0.003 mm

ATORN 1/100 machine reamer set, HSSE, DIN 212, 0.98 - 5.02 mm, 0 - 0.003 mm

ATORN 1/100 machine reamer set, HSSE, DIN 212, 0.98 - 5.02 mm, 0 - 0.003 mm
Item no: 1013500 103

Online price:

Available in 5-7 working days.

Application
For producing fit tolerances in through holes (nominal size=0/+0.003 mm) on a NC machine or conventional machines up to 1000 N/mm².

Execution
7-8° left-hand spiral, type B up to diameter 2.03 mm with dual-sided centring point and continuous shank, type D from diameter 2.98 mm with centring hole and offset shank

Advantage
good bore hole quality (dimensional tolerance, roundness, surface quality)


Brand: ATORN
Material to be processed: Universal use
Cutting material: HSSE
Tolerance of fit: 0 / +0,003 mm
Groove type: Left-hand twist, 7-8°
Surface: Uncoated
Tool holding device: HA parallel shank
Included in delivery: 0.98/0.99/1.00/1.01/1.02/1.98/1.99/2.00/2.01/2.02/2.98/2.99/3.00/3.01/3.02/3.98/3.99/4.00/4.01/4.02/4.98/4.99/5.00/5.01/5.02
Number of pieces in assortment/set: 25 PCS
DIN: 212 similar

ATORN-No.: 10041210

EAN no.: 4050293005226

Product Datasheet Datasheet cutting values
