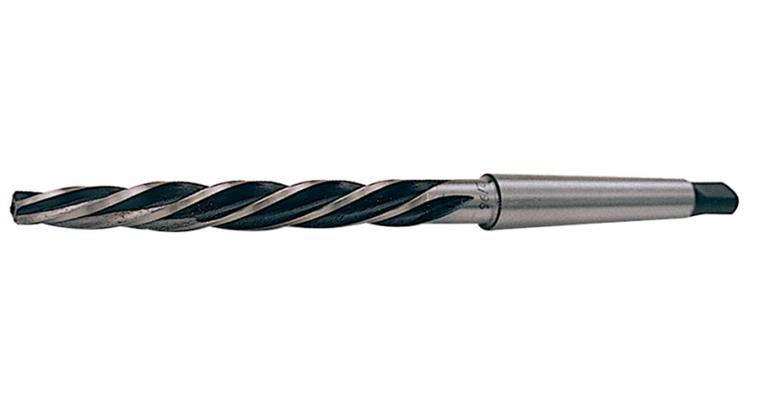

Rivet hole reamer DIN 311 spiral-fluted HSS 6.4 mm

Rivet hole reamer DIN 311 spiral-fluted HSS 6.4 mm

Rivet hole reamer DIN 311 spiral-fluted HSS 6.4 mm
Item no: 1013450 101

Online price:

Available in 5-7 working days.

Application
For reaming offset holes opposite each other that must be bolted or riveted together.

Execution
  • With Morse taper shank
  • Right-cutting
  • Anticlockwise spiral approx. 25°
  • Arched tooth back
  • Cutting length, 1/3 tapered, 2/3 straight


Brand: LIZZARD
Min./max. cutting edge diameter: 4.5-6.4 mm
Tolerance of cutting edge diameter: k10
Groove type: Left-hand twist, 25°
Morse taper size: MK 1
Length: 151 mm
Cutting edge length: 75 mm
Shank style: Morse taper
Cutting material: HSS
Min. diameter: 4,5 mm
Max. diameter: 31,0 mm
f steel 1000: 0,15 mm/r
Coolant supply: External
Cutting direction: Right-hand cutting
DIN: 311
Surface: Vaporised

Versions
loading
Keywords:

[Text nicht gefunden]

  • Rivet hole reamer DIN 311 spiral-fluted HSS 7.4 mm
  •
    Rivet hole reamer DIN 311 spiral-fluted HSS 9.5 mm
  •
    VHM-Schaftfräser Größe M 30° unbeschichtet HB Z2 Ø18
  •
    SC end mill for graphite long diamond coating, 3 x 50 mm, 3 cutting edges
    144,10 €
  • SC end mill for graphite long diamond coating, 4 x 60 mm, 3 cutting edges
    178,80 €
  • SC end mill for graphite long diamond coating, 5 x 60 mm, 3 cutting edges
    99,70 €
  • SC end mill for graphite long diamond coating, 6 x 78 mm, 3 cutting edges
    114,10 €

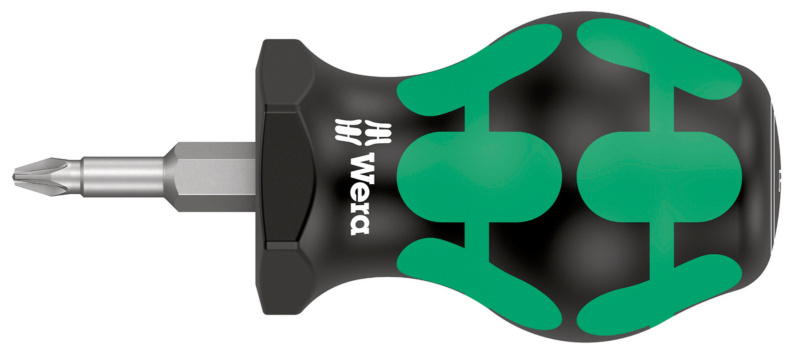

  • Kreuzschlitz-Schraubendreher Stubby 350 PH3 x 25 mm
  •
